151206-8422-TB
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 6 POS 2mm Solder ST Thru-Hole CONN HEADER 2MM 6POS DL T/H 30AU Headers & Wire Housings 6P STRT SOLDER TAIL |
| Category |
Business
| Part # Aliases | 80130076724 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 700 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Electrical
| Voltage Rating | 500 V | Switch Function | Unlatched |
| Current Rating (Max) | 1.5 A | ||
Mechanical
| Color | Black | Pitch | 2 mm |
| Packaging | Bulk | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 6 | Number of Positions | 6 |
| Contact Length - Mating | 0.152" (3.86mm) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | 1512 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
150206-6001-RB
3m interconnect solutions
Conn Socket Strip SKT 6 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 6POS 2MM SOCKET VERT PC MT
150206-6002-TB
3m interconnect solutions
Conn Socket Strip SKT 6 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 6POS 2MM SOCKET VERT PC MT
153206-2000-RB-WA
3m interconnect solutions
Conn Socket Strip SKT 6 POS 2mm Solder ST SMD T/R CONN 2MM SKT 6POS THRU-BRD SMD
950406-5002-AR
3m interconnect solutions
Conn Socket Strip SKT 6 POS 2mm Solder RA Thru-Hole 2 mm and 2 mm x 2 mm Right Angle, Solder Tail CONN SOCKET 6POS RT/A 2MM T/H
950406-8200-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 6 POS 2mm Solder RA SMD Tube 2 mm x 2 mm Right Angle, Surface Mount CONN SOCKET 6POS 2MM R/A SMD Headers & Wire Housings 6P BD MNT SKT 2R RA SMT 10U AU
950406-8220-AR-TR
3m interconnect solutions
Conn Socket Strip SKT 6 POS 2mm Solder RA SMD T/R CONN SOCKET 6POS 2MM R/A SMD
956206-2700-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 6 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 6POS 2MM VERT SMD
956206-2720-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 6 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 6POS 2MM VERT SMD

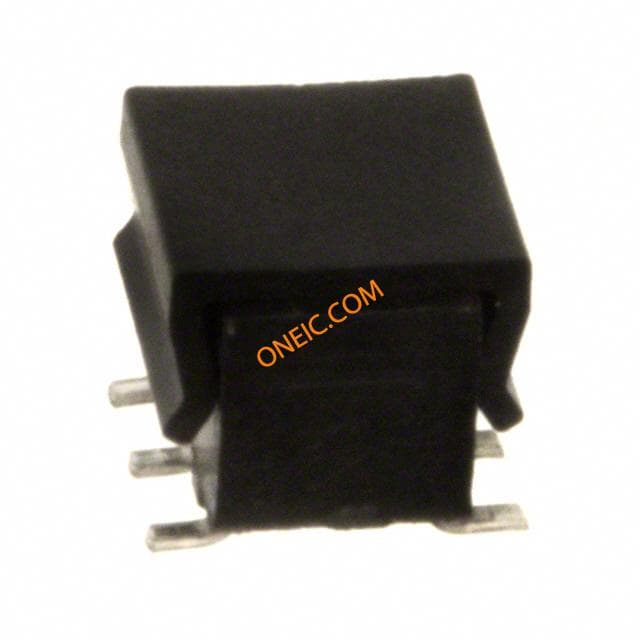

150206-2000-RB-WB
3m interconnect solutions
Conn Socket Strip SKT 6 POS 2mm Solder ST SMD T/R Headers & Wire Housings 6P SMT BD MNT SKT NO LOCATING POSTS CONN 6POS 2MM SOCKET VERT PC SMD
950406-6102-AR
3m interconnect solutions
Conn Socket Strip SKT 6 POS 2mm Solder ST Thru-Hole 2 mm and 2 mm x 2 mm Straight, Solder Tail CONN SOCKET 6POS 2MM VERT T/H

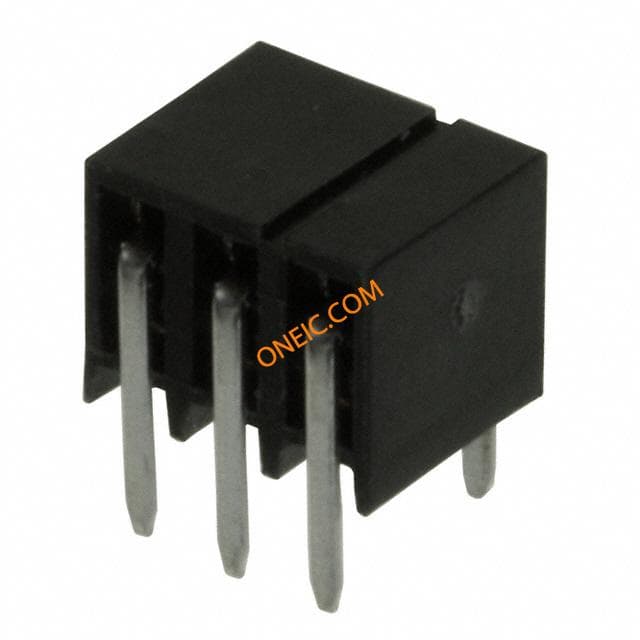

950406-7203-AR
