点击放大查看

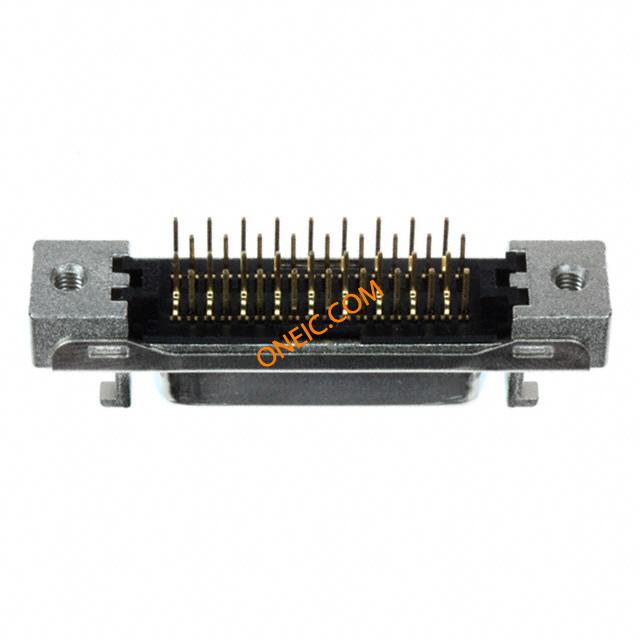

10236-6212PC
| Manufacturer | |
| Description | Conn SCSI RCP 36 POS 2.54mm Solder ST Thru-Hole 36 Terminal 1 Port D-Sub Micro-D Connectors 36P VERT SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Vertical, Shielded CONN MDR RECPT 36POS VERT T/H Receptacle MDR PCB straight 36 pin .050 Mini D Ribbon Connector (36 pos) Receptacle Vertical Boardmount Shielded .050MiniDRibbonConnector(36pos)ReceptacleVerticalBoardmountShielded 3M MDR 102 系列 1.27mm 节距 36 路 直向 通孔安装 Micro-D 印刷电路板连接器 插座 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 54745226187 JE150317673 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Depth | 9.1mm | Pitch | 2.54 mm |
| Width | 11mm | Length | 43.5mm |
| Packaging | Tray | Orientation | 直 |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold |
| Flange Feature | Insert, Threaded (M2.5); Latchblocks | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Connector Style | Outer Shroud Contacts |
| Contact Material | Copper Alloy | Housing Material | Zinc Alloy |
| Size / Dimension | 43.5 x 11 x 9.1mm | Termination Style | Solder |
| Number of Contacts | 36 | Number of Positions | 36 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | SCSI | Gender | RCP |
| Series | 102 | Features | Shielded |
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
Online Document
PDF Document
