10220-6212PL
| Manufacturer | |
| Description | Conn SCSI RCP 20 POS 2.54mm Solder ST Thru-Hole 20 Terminal 1 Port D-Sub Micro-D Connectors 20P SKT BD MT CONN MDR SCKT 20POS PC MNT 3M Female 20 Way Straight Through Hole SCSI Connector 2.54mm Pitch, Solder RECEPTACLE, MDR, STRAIGHT, 20WAY MDRPCBSKT20W MDR socket 20P, 10220-6212PL, 3M 3M 20 路 2.54mm节距 直 通孔 母 SCSI 连接器, 焊接 20P MDR CONNECTOR STRAIGHT |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 54745226147 JE150317277 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 500 V | Number of Poles | :20 |
| Voltage - Breakdown | :500V | Current Rating (Max) | 1 A |
| Insulation Resistance | :500Mohm | ||
Mechanical
| Depth | 9.1mm | Pitch | 2.54 mm |
| Width | 11mm | Length | 33.4mm |
| Weight | 0.008 | Material | :Steel |
| Termination | Solder | Mounting Type | Through Hole |
| Shell Plating | Nickel | Connector Type | Receptacle |
| Contact Finish | Gold | Flange Feature | Insert, Threaded (M2.5); Latchblocks |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | Outer Shroud Contacts |
| Contact Material | Copper Alloy | Housing Material | Zinc Alloy |
| Termination Style | Solder | Color - Connectors | :Black |
| Number of Contacts | 20 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 20 | Contact Finish Thickness | 20µin (0.51µm) |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | SCSI | Gender | RCP |
| Features | Board Guide, Shielded | ||
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
Online Document
PDF Document
Online Document
Similar Parts

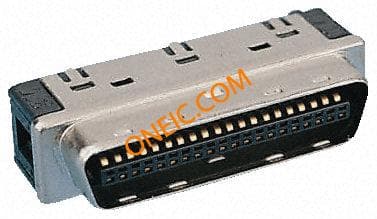

10120-6000EL
