BFV14-8L
| Manufacturer | |
| Description | Terminals BFV14-8L 50/BAG BS-32-8-P 82494 VINYL INSL BUTTED SEAM BLOCK FOR Fork Terminal 14-16AWG 21.59mm 7.62mm Tin Terminal;BlockFork;16to14AWG;0.17in.;ETPCopper(Terminal);Tin;Vinyl |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fork Terminals | Part # Aliases | 05400770259 80610555726 |
| Product Category | Terminals | Standard Package | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Mechanical
| Color | Blue | Packaging | Bulk |
| Insulation | Insulated | Wire Gauge | 14-16 AWG |
| Termination | Crimp | Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud | Terminal Type | Standard |
| Contact Finish | Tin | Contact Material | Copper, ETP |
| Length - Overall | 0.850" (21.59mm) | Insulation Diameter | 0.170" (4.32mm) |
| Width - Outer Edges | 0.300" (7.62mm) | Length - Termination | 0.450" (11.43mm) |
| Material - Insulation | Vinyl | Length - Ring Center to Termination | 0.250" (6.35mm) |
Product Info
| Features | Butted Seam | ||
Environmental
| Mechanical Life | Obsolete | ||
Similar Parts
TH-450
3M Electronic Specialty
Crimpers CRIMP TOOL 26-6 AWG TOOL HAND CRIMP 6-26AWG Tool,Crimping;13.2in.;8in.;4.7in.
$857.2760
Details
TH-440
3M Electronic Specialty
Crimpers CRIMP TOOL 22-10 AWG TOOL 10-22AWG SCOTCHLOK CRIMP CRIMP TOOL, 22-10 AWG CONTACTS Tool,Crimping;10.7in.;8.7in.;4.9in.
$582.0800
Details

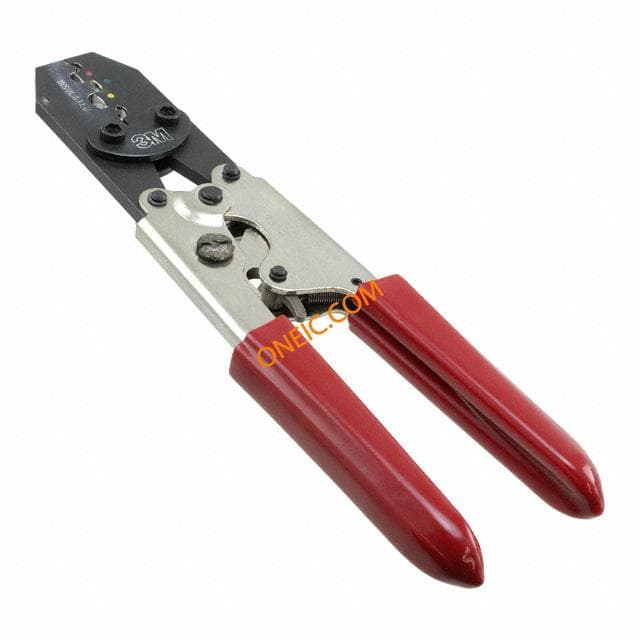

TR-490
