点击放大查看

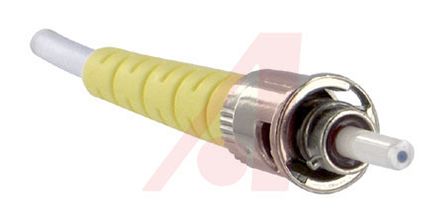

8100-YS
| Manufacturer | |
| Description | 光ファイバーコネクタ HOT MELT YELLOW BOOT 2.4-3mm CONN FIBER ST PLUG SMPLX 125UM Connector; Zinc; 126; Single; Hot Melt; Zirconia Ceramic; Nickel; Bayonet Fiber Optic Connectors HOT MELT YELLOW BOOT 2.4-3mm ST FIBER OPTIC CONN, 9/125 uM SINGLE MODE HotMeltSTConnector,Singlemode 3M(TM) Hot Melt Connector 8100-YS 3M 8100 ST 系列 黄色 ST 单模 光纤连接器, OM3, OM4 125μm 光纤尺寸, |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | ST Connectors | Part # Aliases | 05113836650 80611127624 |
| Product Category | Fiber Optic Connectors | Standard Package | 60 |
Compliance
| RoHS | Not Applicable | Tariff No | 85366910 |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Attenuation - Typ | 0.2dB | ||
Mechanical
| Color | :Yellow | Weight | 8.800001 oz |
| Boot Color | Yellow | Termination | Hotmelt |
| Body Material | Engineered Resin | Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Cable Diameter | 0.9mm | Connector Type | Plug |
| Fastening Type | Bayonet Lock | Connector Style | ST |
| Material - Body | :Metal | Ferrule Material | Zirconia |
| Housing Material | Zinc | Primary Material | FiberOptic |
| Fiber Core Diameter | :9um / 125um | Fiber Cladding Diameter | 125µm |
Product Info
| Mode | Singlemode | Type | ST |
| Series | :- | Features | Dust Cap, Hot Melt, Strain Relief |
| Fiber Type | :Singlemode | Simplex/Duplex | Simplex |
Environmental
| Mating Cycles | 500 | Operating Temperature | -40°C ~ 85°C |
