N7G24-A0B2RB-10-0HT
| Manufacturer | |
| Description | Memory Card Connectors CardConn CompactFlsh ManPush Button Eject CFAST HEADER STANDOFF SMD R/A Conn Compact Flash Card HDR 24 POS Solder RA SMD Tray 1.5A/Contact MEMORY CARD CONNECTOR, 24WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Card Connectors | Part # Aliases | 00051111960059 05111196005 5113859649 XA007002224 |
| Product Category | Memory Card Connectors | Standard Package | 180 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current Rating (Max) | 1.5 A | ||
Mechanical

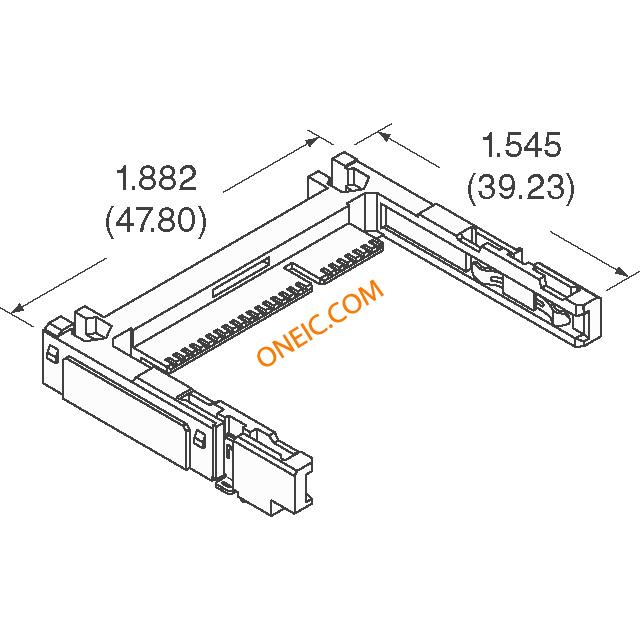

| Color | Beige | Depth | 39.23 mm |
| Pitch | 1.27 mm | Height | 7.7 mm |
| Length | 39.23 mm | Weight | 0 |
| Packaging | Tray | Orientation | Right Angle |
| Termination | Solder | Mounting Type | Surface Mount, Right Angle |
| Connector Type | Connector | Contact Finish | Gold |
| Mounting Style | Surface Mount | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 48.5 mm |
| Mounting Feature | Normal, Standard - Top | Termination Style | SMD |
| Height Above Board | 0.303" (7.70mm) | Number of Contacts | 1 |
| Contact Termination | :Solder | Number of Positions | 24 |
| Contact Finish Thickness | 30µin (0.76µm) | Insertion, Removal Method | Push In, Pull Out |
Product Info
| Type | I, II | Gender | HDR |
| Series | :CFAST | Features | Board Guide, Card Guide |
| Card Type | CFast™ - Type I, II | ||
Environmental
| Operating Temperature | -40C to 85C | ||
Similar Parts
7E50-C016-00
3m interconnect solutions
RETENTION CLIP CF CARD EJECT/LATCHING RETAINER Memory Card Connectors METAL RETAINER CLIP CFII LATCHING RETAINER, N7G24 SERIES HEADERS
$16.8673
Details

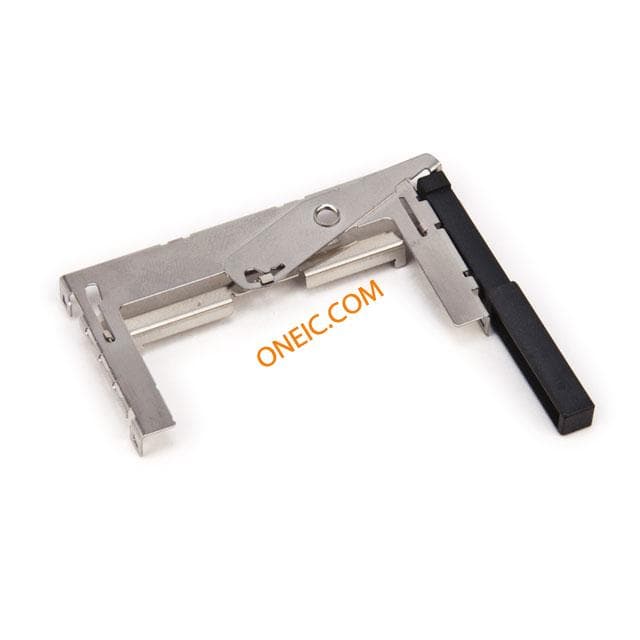

7G24-B5A6-05
