929834-05-22-RK
| Manufacturer | |
| Description | Headers & Wire Housings .100 STR 22 PIN .235-.610 .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 22POS |
| Category |
Business
| Other Names | 929834E-05-22 | Part # Aliases | 07630804143 80001320722 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
Compliance
| RoHS | No | ||
Electrical
| Voltage Rating | 1.5 kV | Current Rating (Max) | 2.5 A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded, Breakaway | Contact Finish | Tin |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| 1st Contact Gender | Pin (Male) | Number of Positions | 22 |
| Contact Length - Mating | 0.235" (5.97mm) | Contact Finish Thickness | 200µin (5.08µm) |
Product Info
| Type | Pin Strip | Series | 929 |
| Product Type | Headers | Number of Positions Loaded | All |
Documents & Media
Similar Parts
929850-01-22-RB
3M Electronic Solutions Division
Headers & Wire Housings 22P STRT BRD MNT SKT 1 ROW 30MICRO AU .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RCPT 22POS STR .100" GOLD

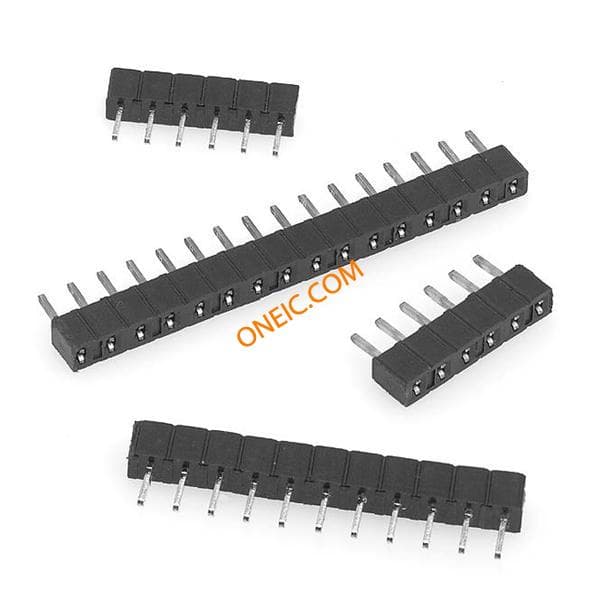

929850-01-22-RA
