929834-04-12-RK
| Manufacturer | |
| Description | Headers & Wire Housings .100 STR 12 PIN .235-.510 .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 12POS |
| Category |
Business
| Other Names | 929834E-04-12 | Part # Aliases | 07630802736 80001306655 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
Compliance
| RoHS | No | ||
Electrical
| Voltage Rating | 1500 V | Current Rating (Max) | 2.5 A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Straight |
| Connector Type | Header, Unshrouded, Breakaway | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Copper Alloy | Termination Style | Solder Tail |
| 1st Contact Gender | Pin (Male) | Number of Positions | 12 |
| Contact Length - Mating | 0.235" (5.97mm) | Contact Finish Thickness | 200µin (5.08µm) |
Product Info
| Type | Pin Strip | Series | 929 |
| Product Type | Headers - Pin Strip | Number of Positions Loaded | All |
Documents & Media
Similar Parts
929870-01-12-RA
3m interconnect solutions
Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole .100" Low Profile, Straight, Solder Tails CONN RCPT 12POS STR .100" GOL Headers & Wire Housings 12P BRD MNT SKT GOLD 1 ROW 10MICRO AU
929850-01-12-RA
3m interconnect solutions
Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 SNGL STR 12POS
929841-01-12-RA
3m interconnect solutions
Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100" Straight, Solder Tails, 1 row (3-40 contacts) or 2 row (4-80 contacts) CONN SOCKET 12POS STR .100" GOLD

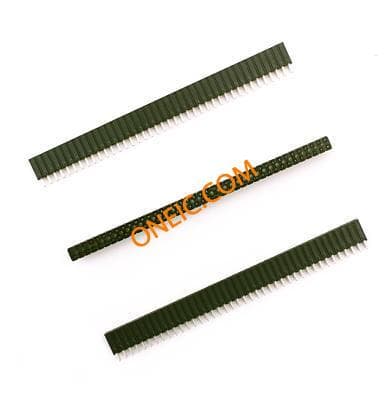

939974-01-12-RK
