89144-0001
| Manufacturer | |
| Description | Headers & Wire Housings 44 POSITION SOCKET DUAL RECESS COVER .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 44POS IDC DUAL GOLD |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 500 | ||
Mechanical
| Color | Gray | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Wire Gauge | 26-28 AWG | Row Spacing | 0.100" (2.54mm) |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Gold |
| Number of Rows | 2 | Cable Termination | IDC |
| Number of Positions | 44 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Features | Feed Through | ||
Documents & Media
Archive
Archive
Archive
Online Document
Online Document
Similar Parts

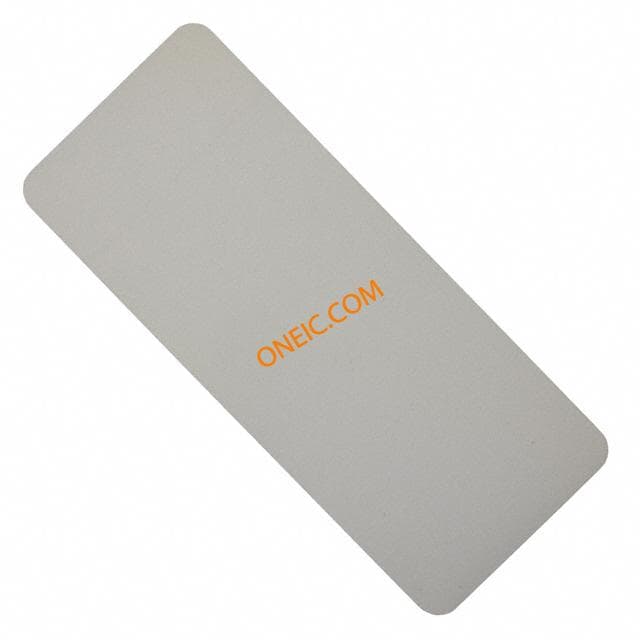

3490-89140
3m interconnect solutions
Connector Accessories Pull Tab Polyester 40-60 POS Roll Pull Tabs, 1000 per roll PULL TAB 40-60POSITION 891SERIES Pull Tab; Socket; Wiremount; 40 to 60; 0.050 in.; 1.25 in. Headers & Wire Housings SOCKET PULL TAB PREASSEMBLED SOCKET PULL TAB PullTab,Socket;Wiremount;40to60;0.050in.;1.25in.
$2.7608
Details

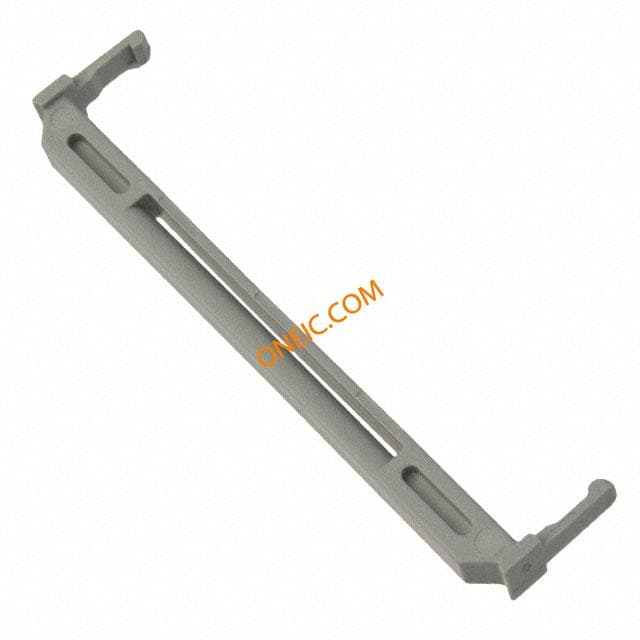

3448-89144
3m interconnect solutions
Connector Accessories Wire Mount Socket Strain Relief 44 POS Polyester Gray .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable STRAIN RELIEF 44 POS IDC SOCKET Headers & Wire Housings STRAIN RELIEF FOR 44P CNCTR StrainRelieffor44posIDCRibbonCableSocket,.1"x.1",.05"Pitch
$2.7491
Details
