5140-B7A2PL
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 40P R/A PLRZD SKT 40P RIGHT ANGLE BM SOCKET .100" Ã .100" Centerbump Polarization with Right Angle Solder Tails CONN SOCKET 40POS R/A DL .100" 40 way IDC low profile board r/a socket SOCKET, PCB, RIGHT ANGLE, 40WAY 3M(TM)POLARIZEDBOARDMOUNTSOCKET,5100SERIES,5140-B7A2PL 3M 5100 系列 2行 40路 2.54mm节距 直角 母 IDC 连接器 , 通孔 |
| Category |
Business
| MOQ | 100 | Unit Pack | 100 |
| Standard Package | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | RoHS-conform | Approval Agency | UL E68080 |
Electrical
| Voltage Rating | 1000V | Number of Poles | :40 |
| Voltage - Working | :350V | Current Rating (Max) | 1A |
| Insulation Resistance | :1000Mohm | ||
Mechanical
| Color | Gray | Pitch | 0.100" (2.54mm) |
| Weight | 0.018 | Packaging | Bulk |
| Cable Exit | NO | Orientation | RIGHTANGLE |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | MALE | Lead Spacing | :2.54mm |
| Pitch - Post | 2.54mm | Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | PBT | Color - Connectors | :Grey |
| Number of Contacts | 40 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 40 | Contact Finish Thickness | 30µin (0.76µm) |
| Contact Material - Plating | FLASHGOLD | ||
Product Info
| Gender | Female | Series | 5100 |
| Features | Polarizing Key | Polarity | :Bump |
| Matchcode | 5140B7A2PL | Standard Leadtime | 17 weeks |
| Other Specifications | NO | Number of Positions Loaded | All |
Environmental
| Mating Cycles | 1 | Operating Temperature | -55 TO 105°C |
Documents & Media
Similar Parts
N2540-6V0C-RB-WG
3M Electronic Solutions Division

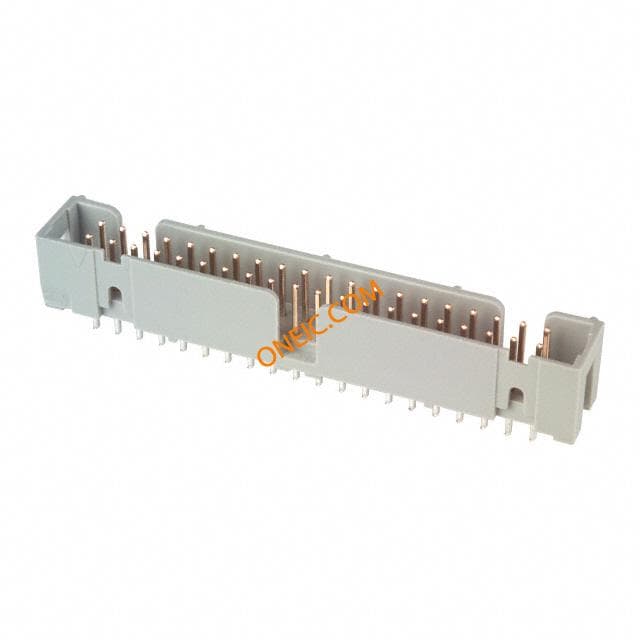

Headers & Wire Housings MOLDED PICK CAP 40 PIN 30u GOLD CONN HEADER 40POS SMT VERT 30AU 3M 2500 Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 2A 2500SeriesLowProfileSMT4wallHeader,Straight,.100X.10040position Pin header SMD, DIN 41651 40P, N2540-6V0C-RB-WG, 3M 3M 2500 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 2A , 表面安装
2540-6003UB
3M Electronic Solutions Division
Headers & Wire Housings 40P STRT SOLDER TAIL .100" Ã .100" Low Profile, SMT Straight, Straight and Rt Angle Through-Hole, 2500 Series CONN HEADER 40POS STR GOLD T/H
4640-7005
3M Electronic Solutions Division
Headers & Wire Housings 40P CLOSED END PLUG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 40POS W/FLANGE&INSE
4640-7301
3m interconnect solutions
40/PG/CL/LL/NFLG/30AVG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 40POS W/OUT FLANGE Headers & Wire Housings 40P CLOSED END PLUG

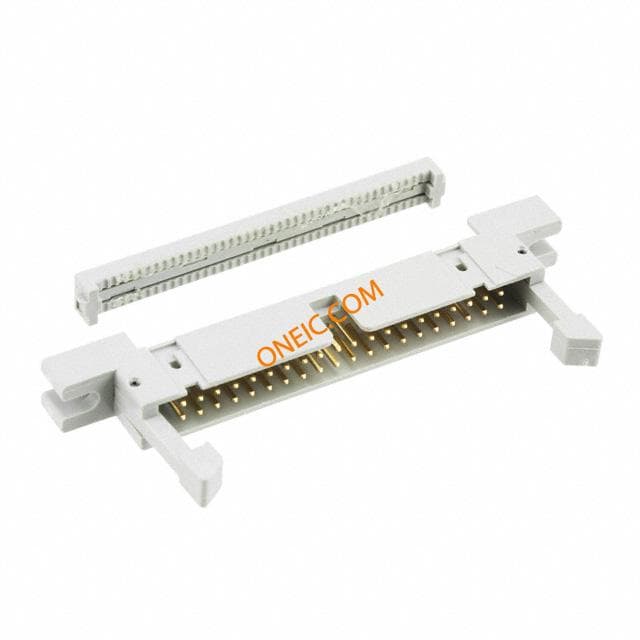

4640-6300
3m interconnect solutions
40/PG/OP/LL/MTG FLNG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 40POS W/FLANGE Headers & Wire Housings 40P OPEN END PLUG Conn Ejector Header PL 40 POS 2.54mm IDT RA Cable Mount
2540-6002UG
3M Electronic Solutions Division
Headers & Wire Housings 40P STRT SOLDER TAIL CONN HEADER 40POS STR GOLD T/H
3432-5003
3M Electronic Solutions Division
Headers & Wire Housings HEADER 40POS R ANGLE NO LATCH .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS R/A NO LATCH Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole
4640-6005
3M Electronic Solutions Division
Headers & Wire Housings 40 CONTACTS,OPEN END WIREMOUNT PLUG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 40POS W/FLANGE&INSE
2540-5002UG
3M Electronic Solutions Division
Headers & Wire Housings 40P R/A SOLDER TAILS CONN HEADER 40POS R/A GOLD T/H
2540-6003UG
3M Electronic Solutions Division
Headers & Wire Housings 40P STRT SOLDER TAIL CONN HEADER 40POS STR GOLD T/H
2540-5003UB
3M Electronic Solutions Division
Headers & Wire Housings 40P R/A SOLDER TAILS CONN HEADER 40POS R/A GOLD T/H
4640-7705
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 40 CON CLSD END MNT FLNG W/THRD INS .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 40POS W/FLANGE&INSE Headers & Wire Housings 40 CON CLSD END MNT FLNG W/THRD INS

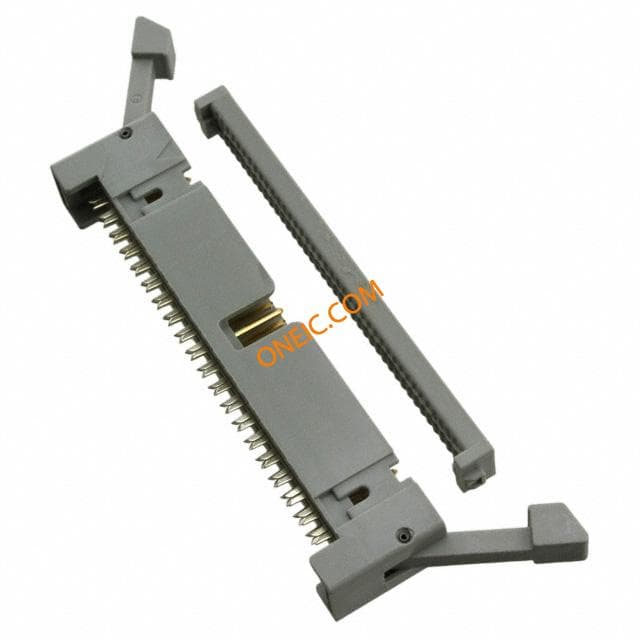

4640-6301
3m interconnect solutions
Conn Ejector Header PL 40 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 40POS W/OUT FLANGE Headers & Wire Housings 40 CONTACTS,OPEN END WIREMOUNT PLUG

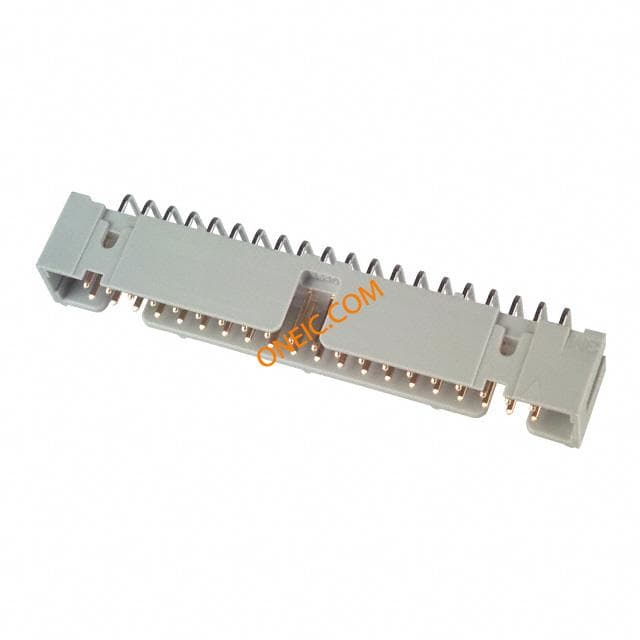

2540-5002UB
3m interconnect solutions
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Low Profile, SMT Straight, Straight and Rt Angle Through-Hole, 2500 Series SHROUDED HEADER 40 POS RT ANGLE WIRE-BOARD CONN, HEADER, 40POS, 2.54MM

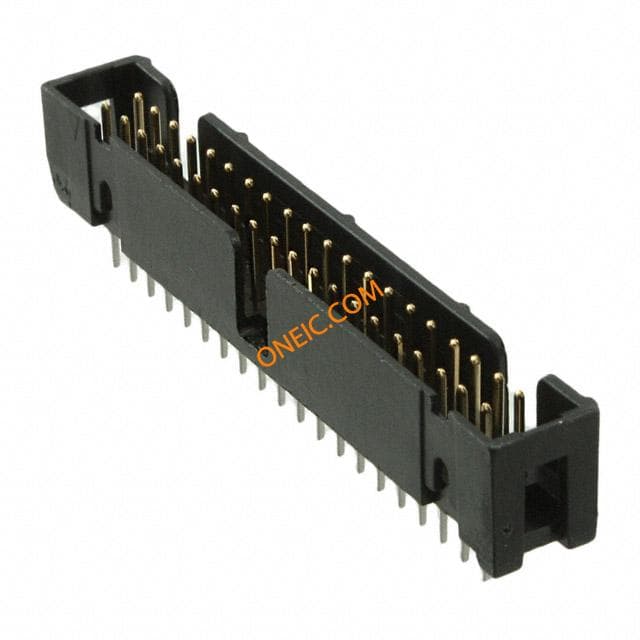

N2540-6003-RB
3M
CONN HEADER 40POS STR GOLD T/H N2540-6003-RB

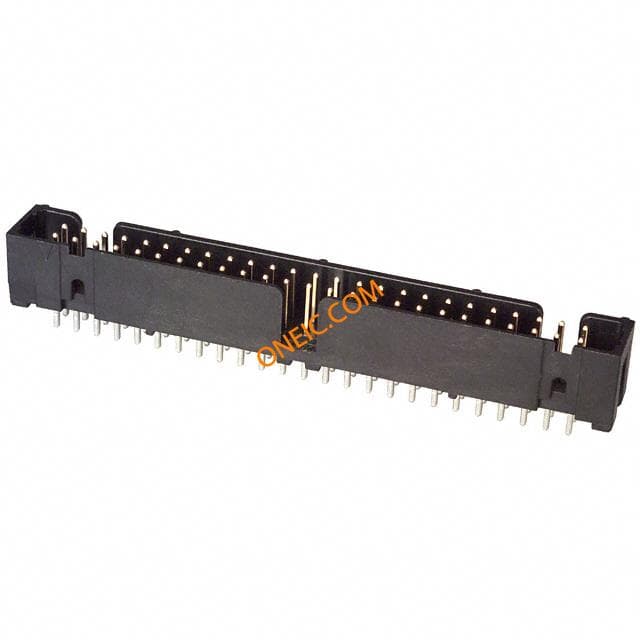

N2540-6002-RB
