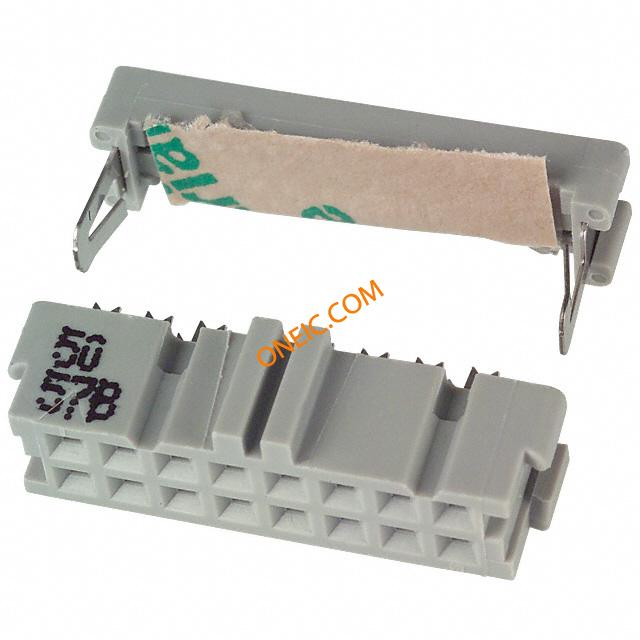

3452-6600
| Manufacturer | |
| Description | Headers & Wire Housings 16P IDC SOCKET 16P WIREMOUNT SOCKET 0,50PITCH .100" Ã .100" Wiremount for .050" Pitch Cable SOCK CONN 16 CONT OPEN W/POL GLD 16 way IDC bump polarised socket Conn IDC Connector SKT 16 POS 2.54mm IDT RA Cable Mount Socket;16Contact,.1"x.1"for.05"Pitchcbl,openend,CenterbumpandMilitary Multipole socket DIN 41651 16P, 3452-6600, 3M 3M 2行 16路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 |
| Category |
Business
| MOQ | 300 | Unit Pack | 300 |
| Part # Aliases | 05400733655 80610121099 | Product Category | Headers & Wire Housings |
| Standard Package | 300 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | RoHS-conform |
| Approval Agency | UL E68080 | RoHS Compliance | Yes |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 1000V | Current Rating (Max) | 1A |
Mechanical
| Color | Gray | Depth | 7.6 mm |
| Pitch | 0.100" (2.54mm) | Height | 10.4 mm |
| Weight | 1 lb | Packaging | Bulk |
| Wire Type | Ribbon Cable | Cable Exit | NO |
| Wire Gauge | 26 TO 28 | Orientation | STRAIGHT |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | FEMALE | Pitch - Post | 2.54mm |
| Housing Color | Gray | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | Gold | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | PBT | Length - Overall | 24.9 mm |
| Primary Material | Industrial | Cable Termination | IDC |
| Pin Hole Diameter | 0.1" | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 16 |
| Dielectric Material | PBT | Number of Positions | 16 |
| Contact Finish Thickness | 30µin (0.76µm) | Contact Material - Plating | GOLD |
Product Info
| Type | Ribbon Cable | Gender | Female |
| Series | 3000 | DELETED | Compliant |
| Features | Feed Through, Polarizing Key | Matchcode | 34526600 |
| CAD Drawing | 3D CAD Model | Manufacturer | 3000Series |
| Product Type | Receptacles / Sockets - Housings | Standard Leadtime | 6 weeks |
Environmental
| Operating Temperature | -55 TO 105°C | ||
