151260-8322-TH
| Manufacturer | |
| Description | Headers & Wire Housings 60P STRT SOLDER TAIL Conn Unshrouded Header HDR 60 POS 2mm Solder ST Thru-Hole CONN HEADER 2MM 60PS DL T/H 15AU |
| Category |
Business
| Part # Aliases | 80130088679 | Product Category | Headers & Wire Housings |
| Standard Package | 168 | Factory Pack Quantity | 168 |
Compliance
| RoHS | No | ||
Electrical
| Current Rating (Max) | 1.5 | ||
Mechanical
| Color | Black | Depth | 3.94 |
| Pitch | 0.079" (2.00mm) | Height | 4.8 |
| Packaging | Bulk | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Header, Unshrouded | Contact Finish | Gold |
| Mounting Style | SMD/SMT | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 60.5 | Termination Style | Solder Tail |
| Number of Contacts | 60 | Number of Positions | 60 |
| Contact Length - Mating | 0.130" (3.30mm) | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | 1512 | Product Type | Headers - Pin Strip |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
150260-6002-RB
3m interconnect solutions
Conn Socket Strip SKT 60 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 60POS 2MM SOCKET VERT PC MT Headers & Wire Housings 60P STRT SOCKET 30U GOLD

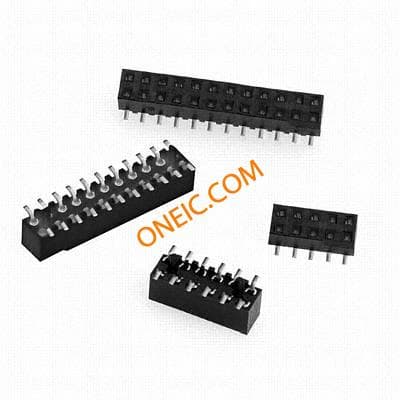

150260-2020-RB
3m interconnect solutions
Conn Socket Strip SKT 60 POS 2mm Solder ST SMD Tray CONN 60POS 2MM SOCKET STR PC SMD Headers & Wire Housings 60 POS 2MM SOLDER STRIP SOCKET

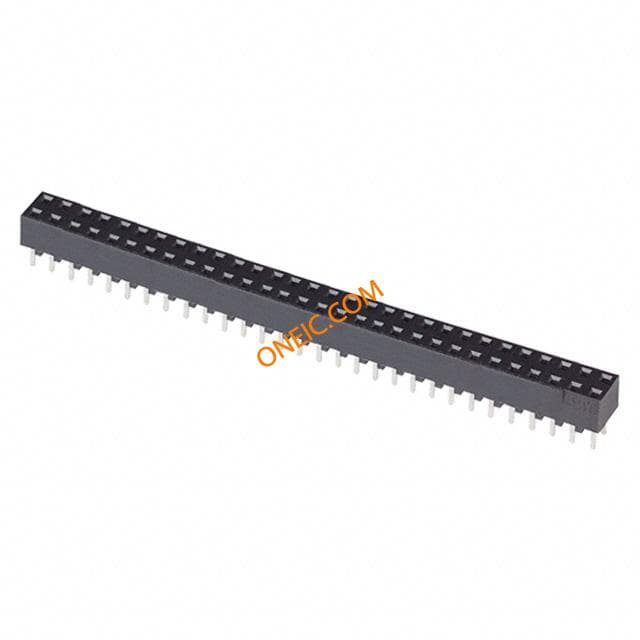

150260-6002-TB
3m interconnect solutions
Conn Socket Strip SKT 60 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 60POS 2MM SOCKET VERT PC MT Socket;Pak20Boardmount;CopperAlloy;GlassFilledPCT;1.5A;60;Gold
950460-5002-AR
3m interconnect solutions
Conn Socket Strip SKT 60 POS 2mm Solder RA Thru-Hole 2 mm and 2 mm x 2 mm Right Angle, Solder Tail CONN SOCKET 60POS RT/A 2MM T/H
953260-2000-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 60 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual Entry, Surface Mount CONN SOCKET 60POS 2MM VERT SMD
153260-2000-TB
3m interconnect solutions
Conn Socket Strip SKT 60 POS 2mm Solder ST SMD Tray CONN SKT 2MM 60POS THRU-BRD SMD
953260-2000-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 60 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual Entry, Surface Mount CONN SOCKET 60POS 2MM VERT SMD
953260-2000-AR-PR
3m interconnect solutions
Conn Socket Strip SKT 60 POS 2mm Solder ST SMD T/R 2 mm x 2 mm Straight, Dual Entry, Surface Mount CONN SOCKET 60POS 2MM VERT SMD Headers & Wire Housings 60P THRU-BD SKT 2R STRT SMT 10U AU
950460-6102-AR
3m interconnect solutions
Conn Socket Strip SKT 60 POS 2mm Solder ST Thru-Hole 2 mm and 2 mm x 2 mm Straight, Solder Tail CONN SOCKET 60POS 2MM VERT T/H
150260-5002-TH
3M Electronic Solutions Division
Headers & Wire Housings 60P R/A SOCKET CONN SOCKET 2MM 60POS R/A 15GOLD

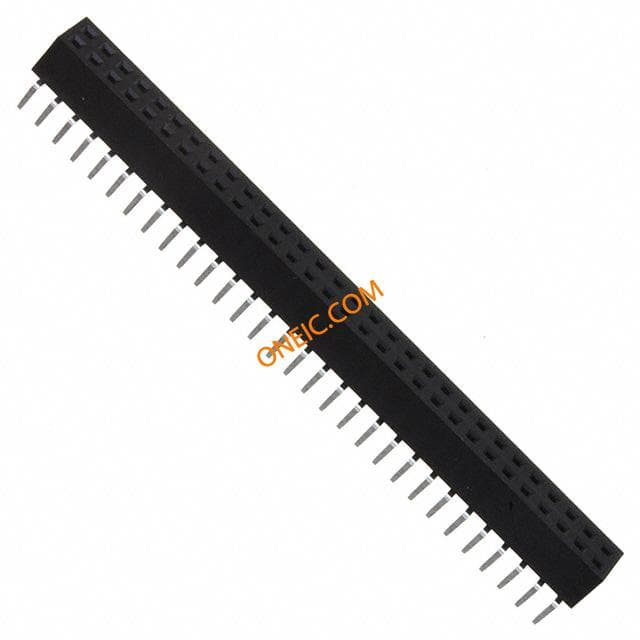

953460-6602-AR
3m interconnect solutions
Conn Socket Strip SKT 60 POS 2mm Solder ST Thru-Hole CONN SOCKET 60POS 2MM VERT T/H
150260-6002-TH
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 60 CON 0.1IN CONN SOCKET 2MM 60POS T/H 30GOLD Headers & Wire Housings 60 CON 0.1IN
153260-2020-TB
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 60P THRU-BRD SMT SKT CONN SKT 2MM 60POS THRU-BRD SMD Headers & Wire Housings 60P THRU-BRD SMT SKT

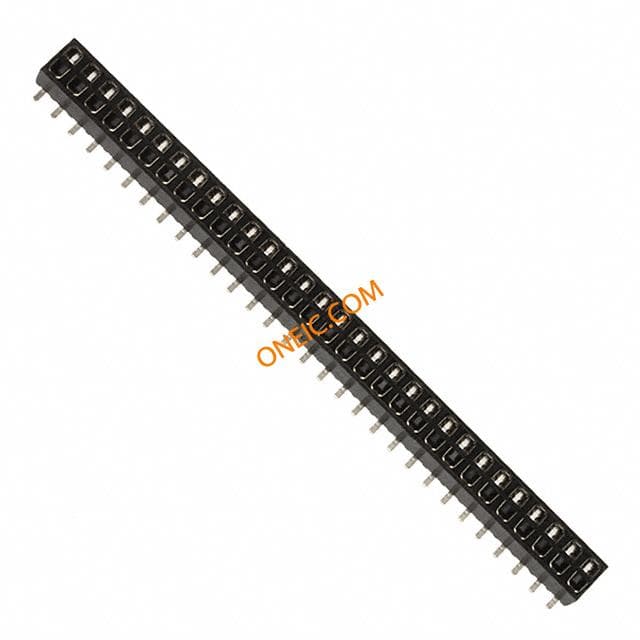

153260-2020-RB
3M Electronic Solutions Division
Headers & Wire Housings FULL STICK HDR/2MM CONN 2MM SKT 60POS THRU-BRD SMD
150260-5002-RB
3m interconnect solutions
Conn Socket Strip SKT 60 POS 2mm Solder RA Thru-Hole 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 60POS 2MM SOCKET R/A PC MT

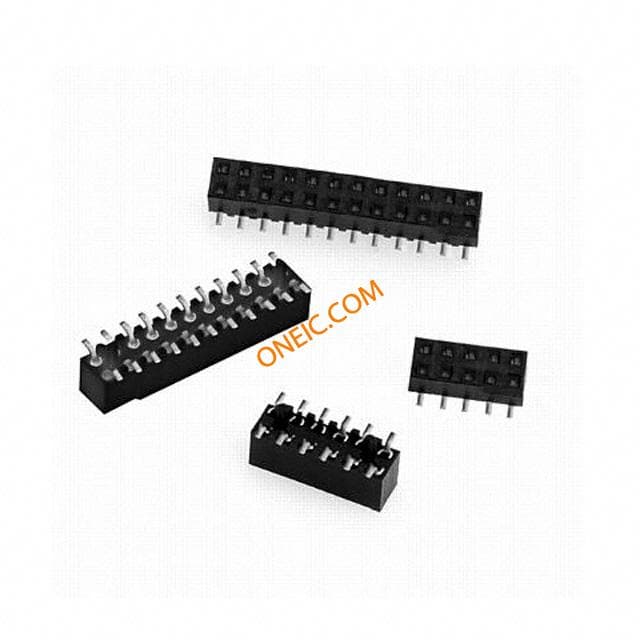

150260-5002-TB
