151250-8322-TB
| Manufacturer | |
| Description | Headers & Wire Housings 50P STRT SOLDER TAIL 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN HEADER 2MM 50PS DL T/H 30AU Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;50;1.5A |
| Category |
Business
| Standard Package | 210 | ||
Compliance
| Standards | ULListed | Approval Agency | cUL,UL |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage - Rated | 500VDC | Current Rating (Max) | 1.5A |
| Insulation Resistance | 5x10^9Ohms(Max.)@250VDC | ||
Mechanical
| Color | Black | Pitch | 0.079" (2.00mm) |
| Plating | Gold-MIL-G-45204,TypeII,GradeC | Packaging | Bulk |
| Row Spacing | 0.079" (2.00mm) | Termination | Solder |
| Contact Type | Male Pin | Length - Pin | 0.118" |
| Mounting Type | Through Hole | Angle of Throw | Straight |
| Connector Type | Header, Unshrouded | Contact Finish | Gold |
| Number of Rows | 2 | Terminal Style | StraightSolderTail |
| Contact Material | CopperAlloy | Housing Material | HighTemperaturePlastic(PCT/LCP) |
| Length - Overall | 1.969" | Primary Material | InterconnectSystem |
| Size / Dimension | 1.950in.+0.005in.,-0.010in.Lx0.155in.Wx0.059in.H | Pin Hole Diameter | 0.0787" |
| Number of Contacts | 50 | Number of Positions | 50 |
| Material - Insulation | GlassFilledPolyester | Contact Length - Mating | 0.130" (3.30mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | PCBPlug | Features | Pinstrip |
| Manufacturer | 1512Series | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55to+105°C | Operating Temperature - Junction | 105°C |
Similar Parts

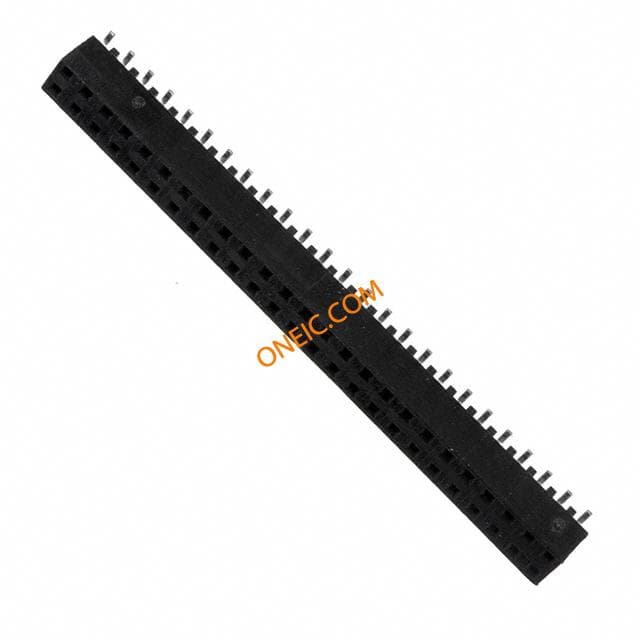

150250-2000-RB
3m interconnect solutions
Conn Socket Strip SKT 50 POS 2mm Solder ST SMD Tray CONN 50POS 2MM SOCKET STR PC SMD
152250-0113-GG
3m interconnect solutions
Conn IDC Connector SKT 50 POS 2mm IDT RA Cable Mount 2 mm à 2 mm Pak 20 Wiremount for 1 mm Pitch Cable CONN SOCKET IDC 2MM 50POS 15GOLD
152250-0010-GG
3m interconnect solutions
Conn IDC Connector SKT 50 POS 2mm IDT RA Cable Mount 2 mm à 2 mm Pak 20 Wiremount for 1 mm Pitch Cable CONN SOCKET IDC 2MM 50POS 15GOLD
150250-5102-RB
3m interconnect solutions
Conn Socket Strip SKT 50 POS 2mm Solder RA Thru-Hole Headers & Wire Housings 50 POSITION 0.053IN. 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 50POS 2MM SOCKET R/A PC MT
150250-2020-RB-WF
3m interconnect solutions
Conn Socket Strip SKT 50 POS 2mm Solder ST SMD T/R 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 50POS 2MM SOCKET STR PC SMD Headers & Wire Housings 50 POSITION W/POST
953250-2000-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 50 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual Entry, Surface Mount CONN SOCKET 50POS 2MM VERT SMD
953250-2000-AR-PR
3m interconnect solutions
Conn Socket Strip SKT 50 POS 2mm Solder ST SMD T/R 2 mm x 2 mm Straight, Dual Entry, Surface Mount CONN SOCKET 50POS 2MM VERT SMD
956250-2000-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 50 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 50POS 2MM VERT SMD
956250-2700-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 50 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 50POS 2MM VERT SMD

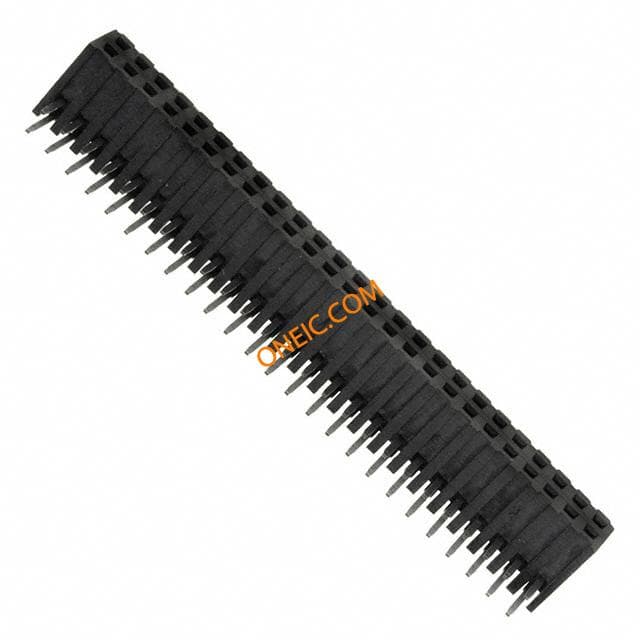

950450-5002-AR
3m interconnect solutions
Conn Socket Strip SKT 50 POS 2mm Solder RA Thru-Hole 2 mm and 2 mm x 2 mm Right Angle, Solder Tail CONN SOCKET 50POS RT/A 2MM T/H
956250-2700-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 50 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 50POS 2MM VERT SMD
956250-2720-AR-PR
3m interconnect solutions
Conn Socket Strip SKT 50 POS 2mm Solder ST SMD T/R 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 50POS 2MM VERT SMD Headers & Wire Housings 50P THRU-BD SKT 2R STRT SMT 10U AU

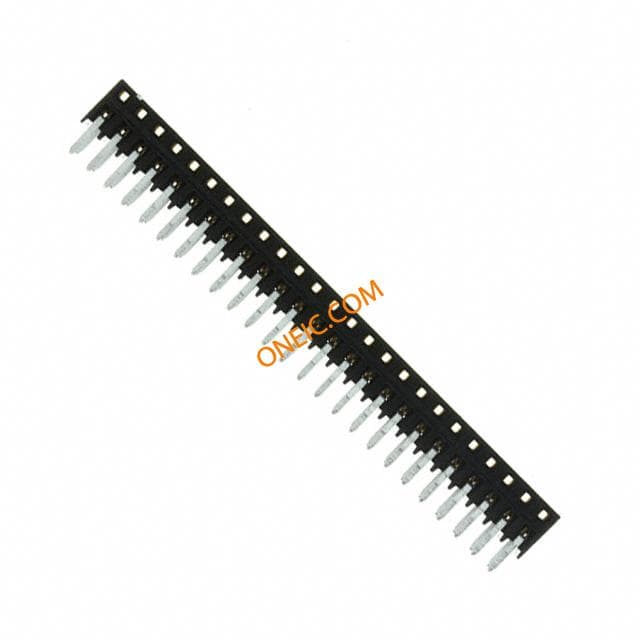

950450-7203-AR
3m interconnect solutions
Conn Socket Strip SKT 50 POS 2mm Solder RA Thru-Hole CONN SOCKET 50POS 2MM R/A T/H Headers & Wire Housings 50P BOARDMNT SCKT RA SOLDER TAIL
150250-5222-TB
3M Electronic Solutions Division
Headers & Wire Housings 50 CON 0.028IN W/POST 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN SOCKET 2MM 50POS R/A 30GOLD

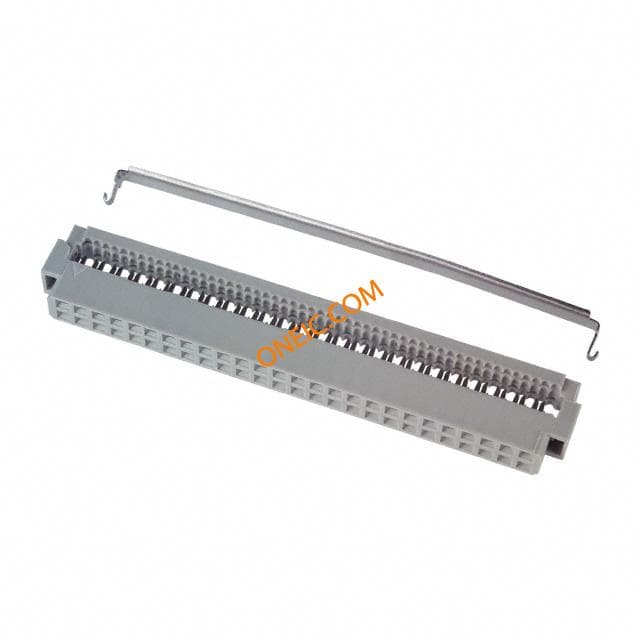

152250-0103-GB
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 50 CONTACTS OPEN COV W/STRAIN Headers & Wire Housings 50 CONTACTS OPEN COV W/STRAIN CONN 50POS 2MM IDC SKT GLD W/SR
150250-5122-RB
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 50 POSITION 0.053IN. W/POST 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 50POS 2MM SOCKET R/A PC MT

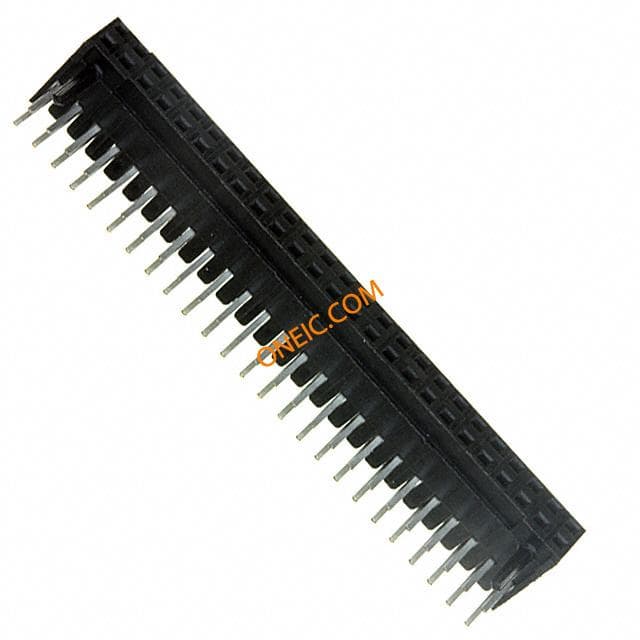

150250-5222-RB
3M Electronic Solutions Division
Headers & Wire Housings 50P MDR SOCKET RT ANGLE 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 50POS 2MM SOCKET R/A PC MT
150250-5222-TH
3M Electronic Solutions Division
Headers & Wire Housings 50P R/A SOCKET CONN SOCKET 2MM 50POS R/A 15GOLD
150250-5002-TH
3M Electronic Solutions Division
Headers & Wire Housings 50 CON 0.015IN CONN SOCKET 2MM 50POS R/A 15GOLD

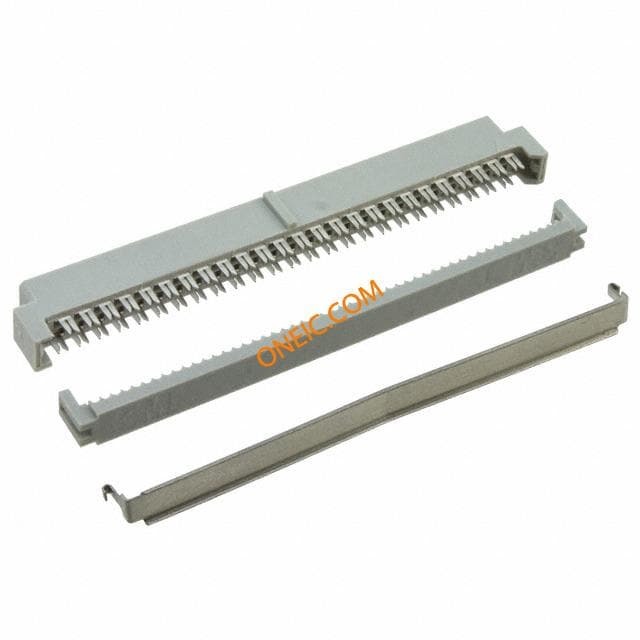

152250-0113-GB
