点击放大查看
151240-7422-TB
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 40P R/A SOLDER TAIL 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 40POS2MM HEADER RT/DUAL GLD Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;40;1.5A |
| Category |
Business
| Standard Package | 315 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standards | ULListed |
| Approval Agency | cUL,UL | RoHS Compliance | No |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage - Rated | 500VDC | Current Rating (Max) | 1.5A |
| Insulation Resistance | 5x10^9Ohms(Max.)@250VDC | ||
Mechanical
| Color | Black | Pitch | 0.079" (2.00mm) |
| Plating | Gold-MIL-G-45204,TypeII,GradeC | Packaging | Bulk |
| Row Spacing | 0.079" (2.00mm) | Termination | Solder |
| Contact Type | Male Pin | Length - Pin | 0.152" |
| Mounting Type | Through Hole, Right Angle | Angle of Throw | Right |
| Connector Type | Header, Unshrouded | Contact Finish | Gold |
| Number of Rows | 2 | Terminal Style | RightAngleSolderTail |
| Contact Material | CopperAlloy | Housing Material | GlassFilledPolyester |
| Length - Overall | 1.575" | Primary Material | InterconnectSystem |
| Size / Dimension | 1.556in.+0.005in.,-0.010in.Lx0.155in.Wx0.059in.H | Pin Hole Diameter | 0.0787" |
| Number of Contacts | 40 | Number of Positions | 40 |
| Material - Insulation | GlassFilledPolyester | Contact Length - Mating | 0.152" (3.86mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | PCBPlug | Manufacturer | 1512Series |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55to+105°C | Operating Temperature - Junction | 105°C |
Documents & Media
Similar Parts
150240-2020-TH
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST SMD Tray CONN SOCKET 2MM 40POS SMD 15GOLD
150240-6002-TB
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 40POS 2MM SOCKET VERT PC MT Socket; Pak 20 Boardmount; Copper Alloy; Glass Filled PCT; 1.5 A; 40; Gold Socket;Pak20Boardmount;CopperAlloy;GlassFilledPCT;1.5A;40;Gold
150240-5002-RB
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder RA Thru-Hole 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 40POS 2MM SOCKET R/A PC MT
953240-2000-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual Entry, Surface Mount CONN SOCKET 40POS 2MM VERT SMD
953440-6602-AR
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST Thru-Hole CONN SOCKET 40POS 2MM VERT T/H
950440-8200-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder RA SMD Tube 2 mm x 2 mm Right Angle, Surface Mount CONN SOCKET 40POS 2MM R/A SMD
956240-2000-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 40POS 2MM VERT SMD
950440-6102-AR
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST Thru-Hole 2 mm and 2 mm x 2 mm Straight, Solder Tail CONN SOCKET 40POS 2MM VERT T/H
953240-2000-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual Entry, Surface Mount CONN SOCKET 40POS 2MM VERT SMD
956240-2000-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 40POS 2MM VERT SMD
956240-2700-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 40POS 2MM VERT SMD
956240-2020-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 40POS 2MM VERT SMD
956240-2720-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 40POS 2MM VERT SMD
950440-7203-AR
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder RA Thru-Hole CONN SOCKET 40POS 2MM R/A T/H
153240-2020-RB
3M Electronic Solutions Division
Headers & Wire Housings 40P THRU BRD SOCKET W/LOCATING POSTS CONN 2MM SKT 40POS THRU-BRD SMD
150240-6002-RB
3M Electronic Solutions Division
Headers & Wire Housings 40P STRT SOCKET 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 40POS 2MM SOCKET VERT PC MT BoardmountSocket,2mmx2mm,40pos,2.54mmsoldertail, 3M 1502 系列 2行 40路 直 2mm节距 通孔 印刷电路板插座, 板安装
152240-0010-GB
3m interconnect solutions
Conn IDC Connector SKT 40 POS 2mm IDT RA Cable Mount 2 mm à 2 mm Pak 20 Wiremount for 1 mm Pitch Cable CONN SOCKET IDC 2MM 40POS 30GOLD Headers & Wire Housings 40 CON CLSD CVR/EVEN

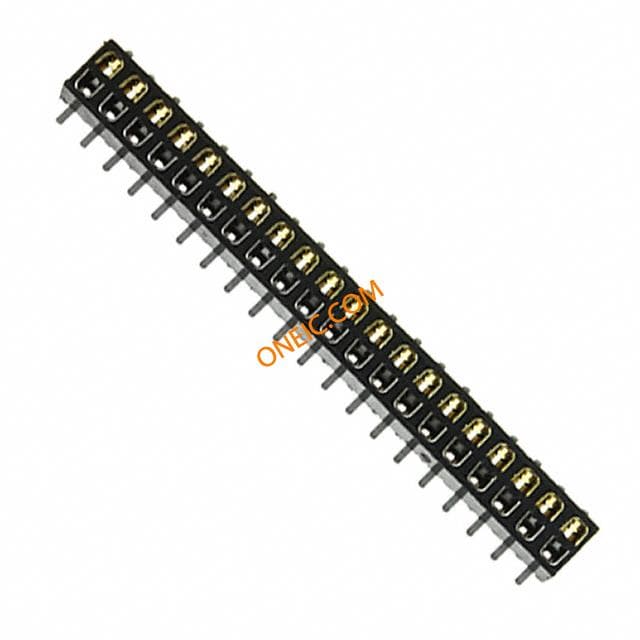

153240-2020-TB
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2mm Solder ST SMD Tray CONN SKT 2MM 40POS THRU-BRD SMD Headers & Wire Housings 40P THRU-BRD SMT SKT
152240-0113-GG
3m interconnect solutions
Conn IDC Connector SKT 40 POS 2mm IDT RA Cable Mount WIREMOUNT SOCKET CONN SOCKET IDC 2MM 40POS 15GOLD

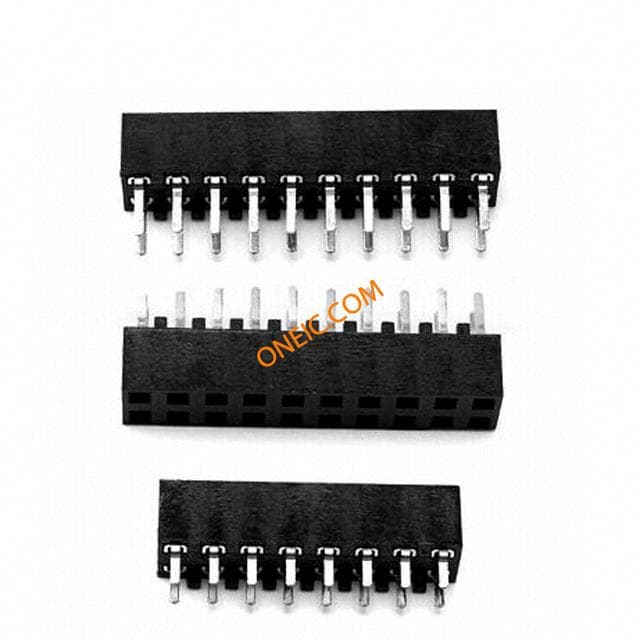

150240-6001-TB
