10180-6000EC
| Manufacturer | |
| Description | D-Sub Micro-D Connectors 80P PLUG SHIELDED IDC WIREMOUNT Wiremount Plug, IDC, Shielded CONN MDR PLUG 80POS IDC GOLD Plug MDR IDC shielded 80 pin 3M 101 系列 1.27mm 节距 80 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳 |
| Category |
Business
| Part # Aliases | 90169008645 JE150174918 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Depth | 9.1mm | Pitch | 1.27mm |
| Width | 12.7mm | Length | 60.1mm |
| Weight | 1 lb | Packaging | Bulk |
| Orientation | 直 | Termination | IDC |
| Mounting Type | Straight | Shell Plating | Nickel |
| Connector Type | Plug | Contact Finish | Gold |
| Mounting Style | Wire | Number of Rows | 2 |
| Connector Style | Center Strip Contacts | Contact Material | Beryllium Copper |
| Housing Material | 钢 | Size / Dimension | 60.1 x 12.7 x 9.1mm |
| Termination Style | IDC | Number of Contacts | 80 |
| Number of Positions | 80 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Gender | Male | Series | 101 |
| Features | Shielded | ||
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
Similar Parts
N10280-5242PC
3m interconnect solutions
Conn SCSI RCP 80 POS 2.54mm Solder RA Thru-Hole 80 Terminal 1 Port D-Sub Micro-D Connectors 80P R/A SHLD RECEPT BOARDMNT 4-40 THREAD CONN MINI-D 80POS R/A RECPT

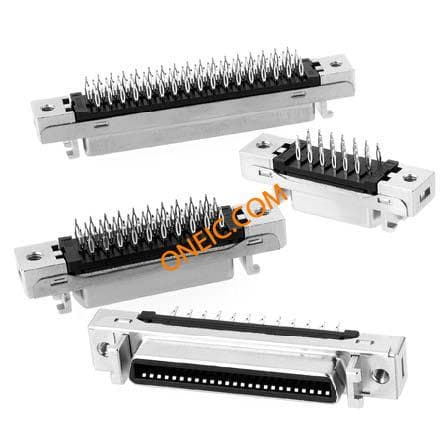

10280-R21TS
