cigen-WLNG-AN-DP
WLNG-AN-DP wifi / 802.11 module Series
The WLNG-AN-DP series from Quatech, Inc., are wireless WiFi modules designed for integration into device server applications. These modules leverage the 802.11 standard for wireless connectivity, offering a robust and reliable way to connect various devices to a network. They come equipped with a UART interface, making them a versatile choice for engineers looking to add wireless capabilities to their embedded systems without the need for complex software development. If you're working on a project that requires a simple yet effective method to enable remote monitoring and control of devices, these modules are a great fit. They support a wide range of applications, from industrial automation to smart home systems, where devices need to communicate wirelessly but also maintain a straightforward interface for configuration and data exchange. One thing worth noting is that these modules are particularly useful in environments where wired connections are impractical or cost-prohibitive. For instance, in large industrial facilities or expansive residential areas, deploying these modules can significantly reduce installation time and costs compared to laying out physical cabling. Additio
The WLNG-AN-DP series from Quatech, Inc., are wireless WiFi modules designed for integration into device server applications. These modules leverage the 802.11 standard for wireless connectivity, offering a robust and reliable way to connect various devices to a network. They come equipped with a UART interface, making them a versatile choice for engineers looking to add wireless capabilities to their embedded systems without the need for complex software development. If you're working on a project that requires a simple yet effective method to enable remote monitoring and control of devices, these modules are a great fit. They support a wide range of applications, from industrial automation to smart home systems, where devices need to communicate wirelessly but also maintain a straightforward interface for configuration and data exchange. One thing worth noting is that these modules are particularly useful in environments where wired connections are impractical or cost-prohibitive. For instance, in large industrial facilities or expansive residential areas, deploying these modules can significantly reduce installation time and costs compared to laying out physical cabling. Additio
Series Images (7)
Documents & Media
Frequently Asked Questions
WLNG-AN-DP wifi / 802.11 module - Part List
5 parts in total| Mfr Part # | Quantity Available | Price | Category | Antenna Connector | Standard Package | RoHS | Security Features | Data Rate | Frequency | Interface | Modulation | Sensitivity | Data Interface | Data Rate (Max) | Voltage - Supply | Current - Receiving | Current - Transmitting | Frequency Bands (Low / High) | Packaging | Package / Case | Protocol | Applications | Modulation or Protocol | Mechanical Life | Operating Temperature | Other Names | Product Category | Power - Output | Size / Dimension | Factory Pack Quantity | Current - Supply | Current - Supply (Main IC) | Part # Aliases |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

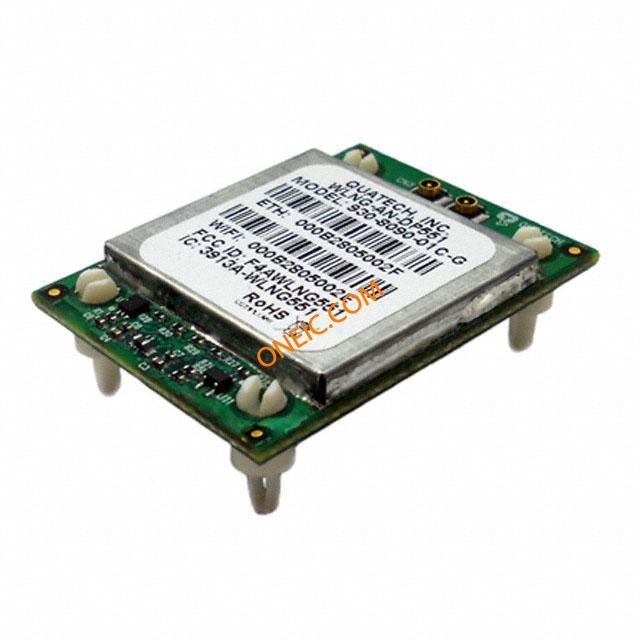

WLNG-AN-DP551 B&B Electronics (Quatech) | 195 | 1: $641.69 | - | U.FL | 1 | RoHS Compliant | AES, TKIP, WEP, WPA | 11 Mbps, 54 Mbps | 2.4GHz ~ 2.4835GHz | UART | DSSS, OFDM | -98dBm | Connector, 36 Pin Header | 54Mbps | 3.3 V | 310mA | 240mA | 2.4 GHz | Bulk | Module | 802.11 b/g | WLAN | 802.11 b/g | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | + 85 C | 590-1059 | - | - | 40 mm x 29.6 mm x 2.5 mm | - | 240 mA | 310 mA | - |

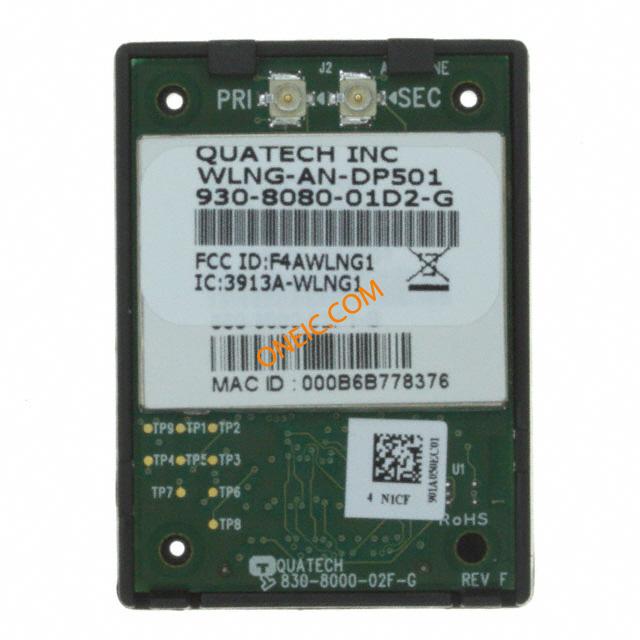

WLNG-AN-DP501 B&B Electronics (Quatech) | 0 | - | U.FL x 2 | 50 | RoHS Compliant | 64/128 bit WEP, WPA, 802.1x | 11 Mbps, 54 Mbps | 2.4GHz | RS-232, RS-422, RS-485, UART | BPSK, CCK, DBPSK, DQPSK, QPSK, 16 QAM, 64 QAM | -87dBm | Connector, 36 Pin Header | 54Mbps | 3.3V | 420mA | 620mA | 2.4 GHz | Bulk | Module | 802.11 b/g | ISM, Military, POS | 802.11 b/g | Obsolete | -40°C ~ 85°C | 590-1044 | WiFi / 802.11 Modules | 15dBm | - | - | - | - | - | |

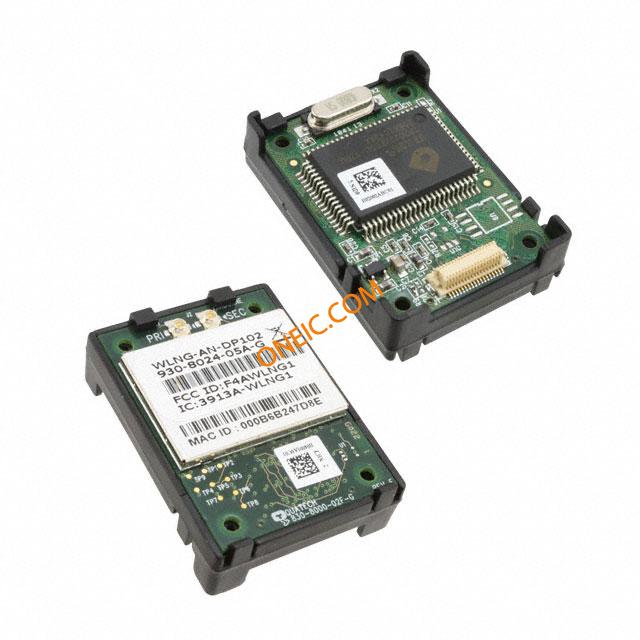

WLNG-AN-DP102 B&B Electronics (Quatech) | 0 | - | U.FL | 50 | RoHS Compliant | 64/128 bit WEP, WPA, 802.1x | 11 Mbps, 54 Mbps | 2.4GHz | RS-232, UART | BPSK, CCK, DBPSK, DQPSK, QPSK, 16 QAM, 64 QAM | -87dBm | Connector, 36 Pin Header | 54Mbps | 3.3 V | 375mA | 575mA | 2.4 GHz | Tray | Module | 802.11 b/g | General Purpose | 802.11b/g | Obsolete | + 85 C | 590-1051 | WiFi / 802.11 Modules | 21.5dBm | 40.6 mm x 29.6 mm x 12.9 mm | 50 | - | - | - | |
WLNG-AN-DP-101 B&B Electronics (Quatech) | 0 | - | U.FL | - | RoHS Compliant | 64/128 bit WEP, WPA, 802.1x | 11 Mbps, 54 Mbps | - | RS-232, UART | BPSK, CCK, DBPSK, DQPSK, QPSK, 16 QAM, 64 QAM | - | - | - | - | - | - | 2.4 GHz | - | - | 802.11 b/g | - | - | Obsolete | - | - | WiFi / 802.11 Modules | - | - | 50 | - | - | WLNG-AN-DP101 | |
WLNG-AN-DP101-G Quatech-Division of B&B Electronics | 0 | - | U.FL x 2 | 50 | - | - | - | 2.4GHz | - | - | -87dBm | Connector, 36 Pin Header | 54Mbps | 3.3V | 375mA | 575mA | - | Tray | Module | - | Serial to 802.11b/g Wireless LAN | 802.11 b/g | - | -30°C ~ 85°C | - | - | 15dBm | - | - | - | - | - |
