cigen-UB500-F42

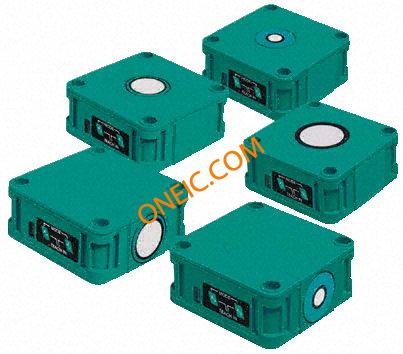

UB500-F42 ultrasonic proximity sensor Series
pepperl-fuchsThe UB500-F42 series from Pepperl+Fuchs is a lineup of ultrasonic proximity sensors designed for industrial applications requiring non-contact distance measurement. These sensors offer a range of 30 to 500 millimeters and feature an M12 connector, making them versatile for various setups. If you're working on automation projects that need precise distance detection without physical contact, these sensors are a solid choice. One thing worth noting is their robust performance in challenging environments. They handle dust, dirt, and moisture well, which makes them ideal for outdoor or dirty industrial settings. Engineers tend to reach for this type of sensor when they need reliable distance measurements in areas where optical sensors might struggle due to lighting conditions or reflective surfaces. Additionally, the M12 connector provides a secure and easy-to-install option, reducing the risk of accidental disconnection in harsh conditions
The UB500-F42 series from Pepperl+Fuchs is a lineup of ultrasonic proximity sensors designed for industrial applications requiring non-contact distance measurement. These sensors offer a range of 30 to 500 millimeters and feature an M12 connector, making them versatile for various setups. If you're working on automation projects that need precise distance detection without physical contact, these sensors are a solid choice. One thing worth noting is their robust performance in challenging environments. They handle dust, dirt, and moisture well, which makes them ideal for outdoor or dirty industrial settings. Engineers tend to reach for this type of sensor when they need reliable distance measurements in areas where optical sensors might struggle due to lighting conditions or reflective surfaces. Additionally, the M12 connector provides a secure and easy-to-install option, reducing the risk of accidental disconnection in harsh conditions
Series Images (6)
Frequently Asked Questions
UB500-F42 ultrasonic proximity sensor - Part List
10 parts in total| Mfr Part # | Quantity Available | Price | Category | Voltage - Supply | Ingress Protection | Operating Temperature | Output Type | Sensor Type | Voltage Rating | Current - Switching | Frequency - Output 1 | Voltage - DC Spark Over (Nom) | Depth | Width | Length | Terminal Type | Connector Type | Housing Material | Size / Dimension | Supplier Device Package | Style | Seal Rating | Operating Range | Detection Capability | Current Rating (Max) | Weight | Size - Body | Body Material | Number of Positions | Measuring Range | Number of Units | Connection Method | Output Configuration | Series | Indicator | Packaging | Shielding | Part Status | Manufacturer | Package / Case | Material - Body | Sensing Distance | Termination Style | Response Frequency | Overload Protection | Current - Short Circuit Rating (SCCR) | Frequency - Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 UB500-F42S-I-V15 Pepperl + Fuchs | 10 | 1: $1,885.34 | - | 10 → 30 V dc | IP54 | +70°C | Analogue | - | 30V | 20 mA | 390kHz | 30V | 34mm | 96mm | 80mm | 5-Pin M12 Connector | 5 引脚 M12 连接器 | ABS | 80 x 96 x 34 mm | Block | 块状 | IP54 | 30 → 500 mm | 30 → 500 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
UB500-F42S-E6-V15 Pepperl + Fuchs | 10 | 1: $1,546.00 | - | 10 → 30 V dc | IP54 | +70°C | PNP | - | 30V | 200 mA | 390kHz | 30V | 34mm | 96mm | 80mm | 5-Pin M12 Connector | 5 引脚 M12 连接器 | ABS | 80 x 96 x 34 mm | Block | 块状 | IP54 | 30 → 500 mm | 30 → 500 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 是 | Yes | - |
UB500-F42-I-V15 Pepperl + Fuchs | 10 | 1: $1,762.00 | - | 10 → 30 V dc | IP65 | +70°C | Analogue | ultrasonic | 30V | 20 mA | 390kHz | 30V | 34mm | 96mm | 80mm | 5-Pin M12 Connector | 5 引脚 M12 连接器 | ABS | 80 x 96 x 34 mm | Block | 块状 | IP54 | 30 → 500 mm | 30 → 500 mm | 200mA | 0.14 kg | 80 x 80 x 34mm | PBT | 5 | 30...500mm | 1 | connector M12 | analogue 4-20mA | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
UB500-F42-E6-V15 Pepperl + Fuchs | 10 | 1: $1,620.00 | - | 10 → 30 V dc | IP54 | +70°C | PNP | - | 30V | 200 mA | 390kHz | 30V | 34mm | 96mm | 80mm | 5-Pin M12 Connector | 5 引脚 M12 连接器 | ABS | 80 x 96 x 34 mm | Block | 块状 | IP54 | 30 → 500 mm | 30 → 500 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 是 | Yes | - |
 UB500-F42-E5-V15 PEPPERL+FUCHS | 10 | 1: $2,297.788 | - | 10...30V DC | IP65 | -25...70°C | - | ultrasonic | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 200mA | 0.14 kg | 80 x 80 x 34mm | PBT | 5 | 30...500mm | 1 | connector M12 | PNP / NO / NC | - | - | - | - | - | - | - | - | - | - | - | - | - | 8Hz |
 UB500-F42-U-V15 PEPPERL+FUCHS | 10 | 1: $2,630.172 | - | 17...30V DC | IP65 | -25...70°C | - | ultrasonic | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 200mA | 0.14 kg | 80 x 80 x 34mm | PBT | 5 | 30...500mm | 1 | connector M12 | 0-10V analogue | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 UB500-F42-E4-V15 Pepperl + Fuchs | 10 | 1: $2,297.788 | - | 10V ~ 30V | IP54 | -25°C ~ 70°C | NPN-NC/NO | Ultrasonic | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | LED | Box | Unshielded | Active | Pepperl+Fuchs, Inc. | Module | Acrylonitrile Butadiene Styrene (ABS) | 1.181" ~ 19.685" (30mm ~ 500mm) | Connector | - | - | - | - |
UB500-F42-E7-V15 Pepperl + Fuchs | 10 | 1: $2,333.896 | - | 10V ~ 30V | IP54 | -25°C ~ 70°C | NPN-NC/NO | Ultrasonic | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | LED | Box | Unshielded | Active | Pepperl+Fuchs, Inc. | Module | Acrylonitrile Butadiene Styrene (ABS) | 1.181" ~ 19.685" (30mm ~ 500mm) | Connector | - | - | - | - |
UB500-F42S-E4-V15 Pepperl + Fuchs | 10 | 1: $2,297.788 | - | 10V ~ 30V | IP54 | -25°C ~ 70°C | NPN-NC/NO | Ultrasonic | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | LED | Box | Unshielded | Active | Pepperl+Fuchs, Inc. | Module | Acrylonitrile Butadiene Styrene (ABS) | 1.181" ~ 19.685" (30mm ~ 500mm) | Connector | - | - | - | - |
UB500-F42S-E7-V15 Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
