cigen-UB500-18GM

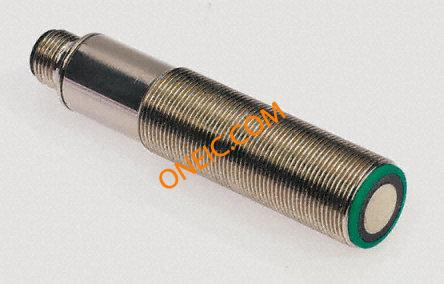

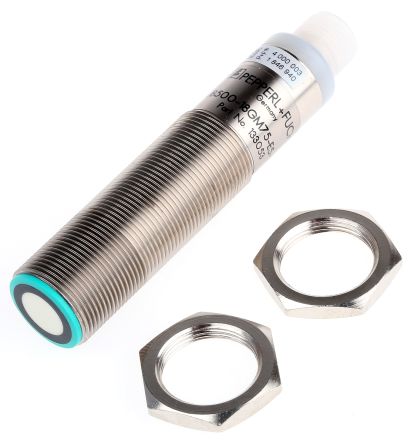

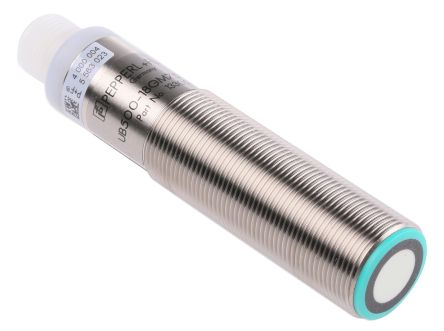

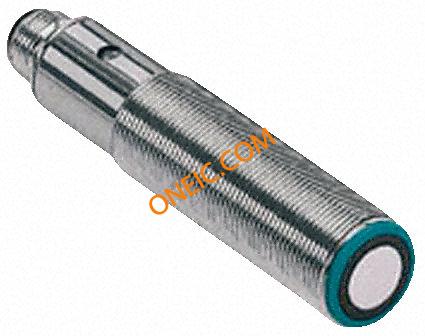

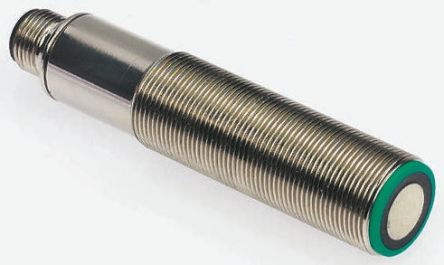

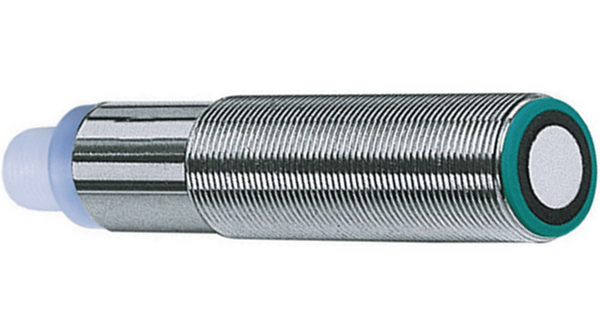

UB500-18GM ultrasonic proximity sensor Series
pepperl-fuchsThe UB500-18GM series from Pepperl+Fuchs is a line of cylindrical ultrasonic proximity sensors designed for reliable distance measurement in industrial environments. These sensors offer a measurement range of 30 to 500 millimeters, making them suitable for a variety of applications where precise object detection is needed without physical contact. If you're working on automated assembly lines, conveyor systems, or machine guarding, these sensors can be a great fit due to their compact design and robust performance. One thing worth noting is the M12 connector, which provides both power and signal transmission, simplifying installation and reducing cable clutter. This feature is particularly handy in tight spaces or when multiple sensors need to be installed close together. Engineers tend to reach for this when they need a sensor that can handle harsh industrial conditions while maintaining high accuracy and reliability. Another practical advantage is their ability to operate effectively in dusty or humid environments, thanks to their sealed construction. Overall, the UB500-18GM series offers a solid solution for distance sensing tasks in demanding industrial settings
The UB500-18GM series from Pepperl+Fuchs is a line of cylindrical ultrasonic proximity sensors designed for reliable distance measurement in industrial environments. These sensors offer a measurement range of 30 to 500 millimeters, making them suitable for a variety of applications where precise object detection is needed without physical contact. If you're working on automated assembly lines, conveyor systems, or machine guarding, these sensors can be a great fit due to their compact design and robust performance. One thing worth noting is the M12 connector, which provides both power and signal transmission, simplifying installation and reducing cable clutter. This feature is particularly handy in tight spaces or when multiple sensors need to be installed close together. Engineers tend to reach for this when they need a sensor that can handle harsh industrial conditions while maintaining high accuracy and reliability. Another practical advantage is their ability to operate effectively in dusty or humid environments, thanks to their sealed construction. Overall, the UB500-18GM series offers a solid solution for distance sensing tasks in demanding industrial settings
Series Images (8)
Documents & Media
Frequently Asked Questions
UB500-18GM ultrasonic proximity sensor - Part List
10 parts in total| Mfr Part # | Quantity Available | Price | Category | Size / Dimension | Operating Temperature | Output | Output Type | Voltage Rating | Voltage - Supply | Current - Switching | Overload Protection | Frequency - Output 1 | Voltage - DC Spark Over (Nom) | Current - Short Circuit Rating (SCCR) | Length | Diameter | Thread Size | Terminal Type | Connector Type | Housing Material | Supplier Device Package | Style | Seal Rating | Operating Range | Ingress Protection | Detection Capability | Viewing Angle | Frequency - Switching | Voltage - Supply (Min) | Voltage - Protection Level (VP) (2416) | Thread Length | Design | Connection Method | Acceleration Range | Body Finish | Termination | Primary Material | Type | Function | Technology | Measuring Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 UB500-18GM75-E5-V15 Pepperl + Fuchs | 27 | 1: $2,015.00 | - | M18 x 75 mm | +70°C | PNP | PNP | 30V | 10 → 30 V dc | 200 mA | 是 | 380kHz | 30V | Yes | 85mm | 18 mm | M18 x 1 | 5-Pin M12 Connector | 5 引脚 M12 连接器 | Nickel Plated Brass | Barrel | 柱体 | IP65 | 30 → 500 mm | IP65 | 30 → 500 mm | 5 °@ -3 dB | 8 Hz | 10...30 VDC | IP 65 | 75 | 5-pole | Plug M12 | 30...500 mm | Cylindrical | QuickDisconnect | Proximity | Ultrasonic | Proximity | Ultrasonic | 500mm |
UB500-18GM75-E4-V15 Pepperl + Fuchs | 10 | 1: $2,015.00 | - | 85 x 18 mm | +70°C | - | NPN | 30V | 10 → 30 V dc | 200 mA | 是 | 380kHz | 30V | Yes | 85mm | 18 mm | M18 x 1 | 5-Pin M12 Connector | 5 引脚 M12 连接器 | Nickel Plated Brass | Barrel | 柱体 | IP65 | 30 → 500 mm | IP65 | 30 → 500 mm | - | 8 Hz | - | - | - | - | - | - | - | - | - | - | - | - | - |
 UB500-18GM75-E6-V15 Pepperl + Fuchs | 10 | 1: $1,767.932 | - | 85 x 18 mm | +70°C | PNP | PNP | 30V | 10 → 30 V dc | 200 mA | 是 | 380kHz | 30V | Yes | 85mm | 18 mm | M18 x 1 | 5-Pin M12 Connector | 5 引脚 M12 连接器 | Nickel Plated Brass | Barrel | 柱体 | IP65 | 30 → 500 mm | IP65 | 30 → 500 mm | - | 8 Hz | - | - | - | - | - | - | Cylindrical | QuickDisconnect | Proximity | Ultrasonic | Proximity | Ultrasonic | 500mm |
UB500-18GM75-I-V15 Pepperl + Fuchs | 12 | 1: $2,259.00 | - | M18 x 75 mm | +70°C | 4...20 mA | Analogue | 30V | 10 → 30 V dc | 20 mA | 是 | 380kHz | 30V | Yes | 85mm | 18 mm | M18 x 1 | 5-Pin M12 Connector | 5 引脚 M12 连接器 | Nickel Plated Brass | Barrel | 柱体 | IP65 | 30 → 500 mm | IP65 | 30 → 500 mm | 5 °@ -3 dB | - | 10...30 VDC | IP 65 | 75 | 5-pole | Plug M12 | 30...500 mm | - | - | - | - | - | - | - |
 UB500-18GM75-E01-V15 Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 UB500-18GM75-U-V15 Pepperl + Fuchs | 10 | 1: $5,249.3484 | - | M18 x 75 mm | -25...+70 °C | 0...10 V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 5 °@ -3 dB | - | 10...30 VDC | IP 65 | 75 | 5-pole | Plug M12 | 30...500 mm | - | - | - | - | - | - | - |
UB500-18GM75-E5-V15-ET-Y216689 Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
UB500-18GM75-U-V15-Y112929 Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
UB500-18GM75-U-V15-Y120686 Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
UB500-18GM75-U-V15-Y129218 Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
