MSO2014B test, measurement & inspection Series

tektronix

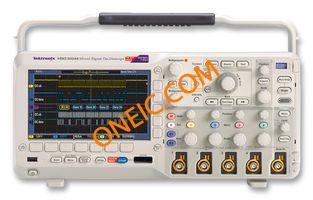

The MSO2014B from Tektronix is a robust mixed-signal oscilloscope designed for both analog and digital signal analysis. With 4 analog and 16 digital channels, it’s particularly well-suited for complex mixed-signal testing in environments where you need to capture and analyze both analog waveforms and digital signals simultaneously. This setup makes it ideal for tasks such as debugging embedded systems, validating communication protocols, and analyzing power supplies in electronic design and development workflows. If you're working on projects involving microcontrollers, FPGAs, or any system that integrates digital logic with analog circuits, the MSO2014B is a powerful tool. Engineers tend to reach for this when they need to troubleshoot issues that span both domains, as it provides the necessary depth to dissect the behavior of mixed-signal systems. One thing worth noting is its 100MHz bandwidth, which is quite sufficient for many applications but may be limiting for very high-speed digital signals. However, the ability to capture a wide range of signals across multiple channels makes up for this limitation in many scenarios. Another practical benefit is its intuitive user interfac
