MDO4034 test, measurement & inspection Series

tektronix

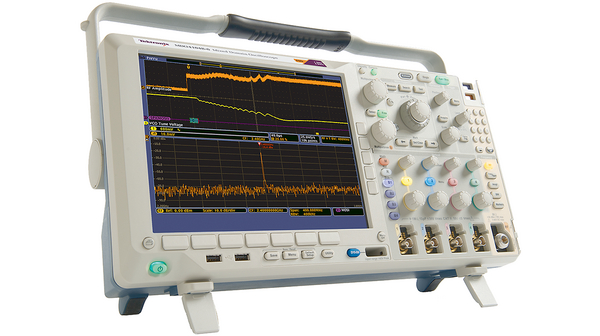

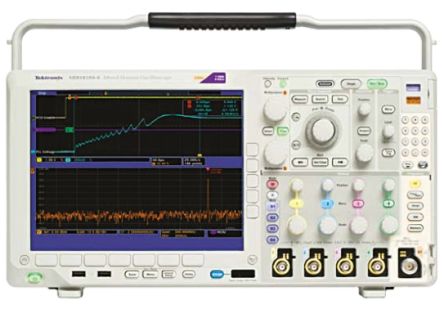

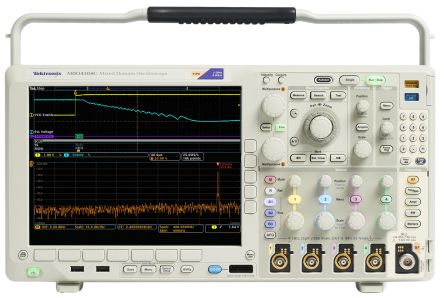

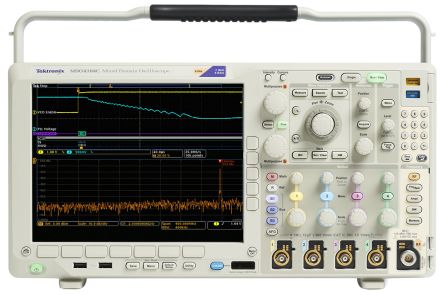

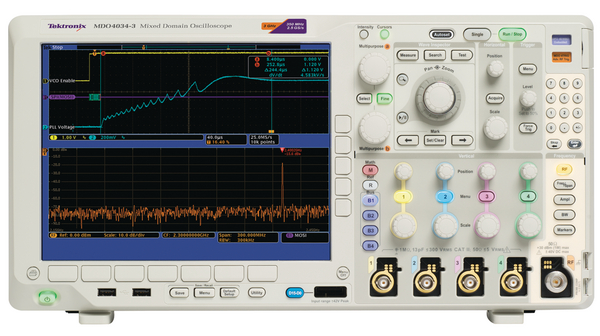

The MDO4034 from Tektronix is a powerful mixed-domain oscilloscope designed for complex testing and measurement tasks. It offers a robust set of 4 analog channels, 16 digital channels, and RF capabilities, making it an ideal choice for engineers working on projects that require both traditional analog signal analysis and modern digital and RF signal handling. If you're working on mixed-signal systems, such as designing or troubleshooting automotive electronics, or developing communication systems, the MDO4034 can be a game-changer. Its ability to handle multiple types of signals simultaneously allows for comprehensive analysis and debugging. One thing worth noting is its deep memory, which can capture long-duration waveforms and sequences, providing more context around transient events. Engineers tend to reach for this when they need to understand how different components interact in real-world conditions, especially in systems where digital and analog signals are intertwined. Another practical benefit is its flexibility in handling various types of signals, from low-frequency analog signals to high-speed digital signals and even RF signals. This makes it a versatile tool for a wid
