cigen-M2015SA2
M2015SA2 toggle switche Series
Compact SPDT toggle switches for PC mounting, rated 6A and 0.4VA
The M2015SA2 series from NKK Switches is a compact SPDT toggle switch designed for PC mount applications. These switches are rated at 6A and 0.4VA, making them suitable for a variety of low-power control scenarios. If you're working on projects that require a reliable, space-saving toggle switch for desktop enclosures or similar applications, these could be a great fit.
One thing worth noting is their compact design, which makes them ideal for space-constrained environments. Engineers tend to reach for this when they need a switch that can be easily integrated into a PCB without taking up too much real estate. Additionally, the SPDT configuration provides flexibility in circuit design, allowing for both on/off and momentary switching functionalities.
These switches are commonly found in computer cases, audio equipment, and industrial control panels. They offer a solid solution for applications requiring simple yet robust switching mechanisms. The 6A current rating ensures they can handle moderate loads, while the 0.4VA rating is sufficient for most low-voltage control circuits. Overall, the M2015SA2 series provides a balance of performance and size, making them a popular choice among engineers looking for a dependable toggle switch for their projects.
Series Images (3)
Documents & Media
Frequently Asked Questions
M2015SA2 toggle switche - Part List
8 parts in total| Mfr Part # | Quantity Available | Price | Category | Standard Package | Circuit | Voltage Rating | Switch Function | Current Rating (Max) | Packaging | Actuator Type | Mounting Type | Bushing Thread | Actuator Length | Actuator Material | Termination Style | Features | Illumination | Electrical Life | Operating Temperature | RoHS | EU RoHS | Voltage - Input (Min) | Switch Function/Rating | Depth | Height | Terminal Type | Contact Finish | Contact Material | Length - Overall | Actuator Style/Size | Switch Actuation Level | Type | Mechanical Life | Power - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 M2015SA2W13 Switch Toggle ON None (ON) SPDT Small Bat Toggle PC Pins 6A 250VAC 30VDC PC Mount with Bracket SWITCH TOGGLE SPDT 6A 125V SPDTONNONE(ON),.413InBat,.280InSmoothwithKeyway,SilverRated6A@125V NKK Switches | 28 | 1: $28.56 | - | 1 | SPDT | 125V | On-Mom | 6A (AC), 3A (DC) | Bulk | Standard Round | PC Mount with Bracket | Unthreaded | 12.27mm | Brass, Chrome Plated | PC Pin | Epoxy Sealed Terminals | Non-Illuminated | 25,000 Cycles | -30°C ~ 85°C | Lead free / RoHS Compliant | Compliant | 250 | ON None (ON) | 8 | 31.18 | PC Pins | Silver | Silver Alloy | 16.3 | Small Bat Toggle | SPDT | Miniature | 100000 | - |

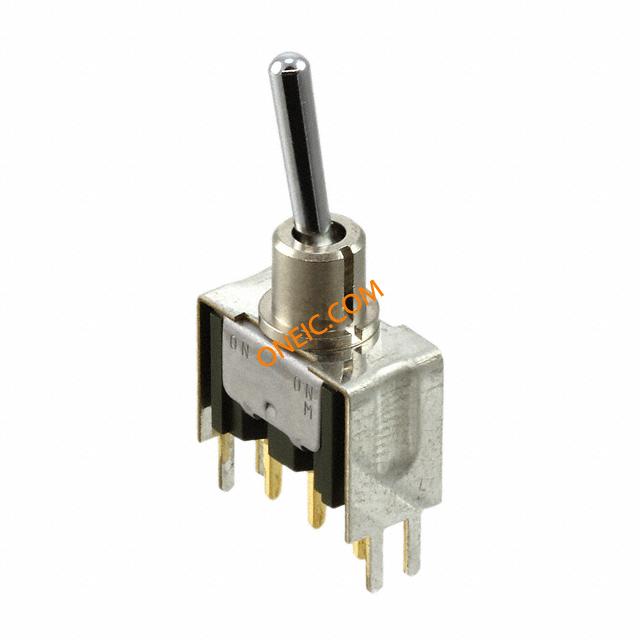

 M2015SA2A13 Switch Toggle ON None (ON) SPDT Small Bat Toggle PC Pins 6A 250VAC 30VDC 0.4VA PC Mount with Bracket SWITCH TOGGLE SPDT 6A 125V SPDTONNONE(ON),.413InBat,.280InSmoothwithKeyway,GoldoverSilverRated NKK Switches | 213 | 1: $35.972 | - | 1 | SPDT | 125V | On-Mom | 6A (AC), 3A (DC) | Bulk | Standard Round | PC Mount with Bracket | Unthreaded | 12.27mm | Brass, Chrome Plated | PC Pin | Epoxy Sealed Terminals | Non-Illuminated | 25,000 Cycles | -30°C ~ 85°C | Lead free / RoHS Compliant | Compliant | 250 | ON None (ON) | 8 | 31.18 | PC Pins | Gold | Silver Alloy | 16.3 | Small Bat Toggle | SPDT | Miniature | 100000 | 0.4@28VAC 28VDC |

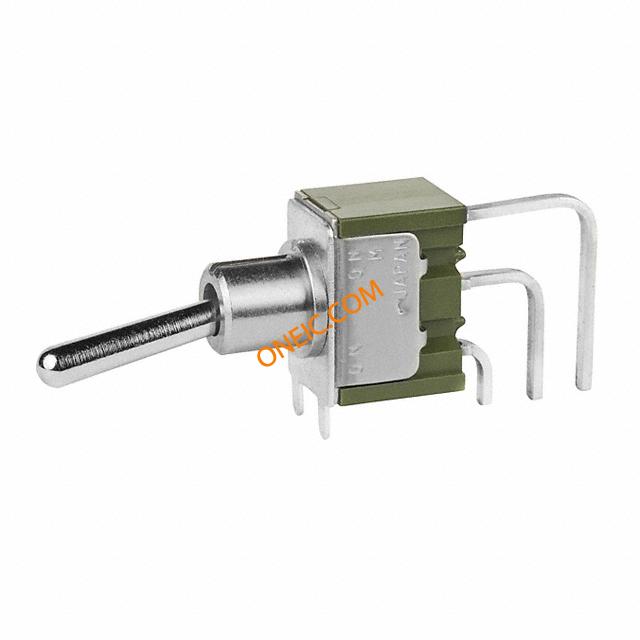

 M2015SA2W40 SW TOGGLE SPDT SMOOTH SILVER SWITCH TOGGLE SPDT 6A 125V SPDTONNONE(ON),.413InBat,.280InSmoothwithKeyway,SilverRated6A@125V NKK Switches | 10 | 1: $33.116 | - | 1 | SPDT | 125V | On-Mom | 6A (AC), 3A (DC) | Bulk | Standard Round | Through Hole, Right Angle, Vertical | Unthreaded | 12.27mm | Brass, Chrome Plated | PC Pin | Epoxy Sealed Terminals | Non-Illuminated | 25,000 Cycles | -30°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
M2015SA2A40 SW TOGGLE SPDT SMOOTH GOLD/SILV SWITCH TOGGLE SPDT 6A 125V SPDTONNONE(ON),.413InBat,.280InSmoothwithKeyway,GoldoverSilverRated NKK Switches | 10 | 1: $39.10 | - | 1 | SPDT | 125V | On-Mom | 6A (AC), 3A (DC) | Bulk | Standard Round | Through Hole, Right Angle, Vertical | Unthreaded | 12.27mm | Brass, Chrome Plated | PC Pin | Epoxy Sealed Terminals | Non-Illuminated | 25,000 Cycles | -30°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
M2015SA2G30 MINIATURE TOGGLE/MULTI-FUNCTION SWITCH TOGGLE SPDT 0.4VA 28V SPDTONNONE(ON),.413InBat,.280InSmoothwithKeyway,GoldRated0.4VAmax. NKK Switches | 10 | 1: $34.816 | - | 1 | SPDT | 28V | On-Mom | 0.4VA (AC/DC) | Bulk | Standard Round | Through Hole, Right Angle | Unthreaded | 12.27mm | Brass, Chrome Plated | PC Pin | Epoxy Sealed Terminals | Non-Illuminated | 50,000 Cycles | -30°C ~ 85°C | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 M2015SA2A13/U MINIATURE TOGGLE/MULTI-FUNCTION SWITCH TOGGLE SPDT 6A 125V SPDTONNONE(ON),.413InBat,.280InSmoothwithKeyway,GoldoverSilverRated NKK Switches | 10 | 1: $35.972 | - | 1 | SPDT | 125V | On-Mom | 6A (AC), 3A (DC) | Bulk | Standard Round | Through Hole | Unthreaded | 12.27mm | Brass, Chrome Plated | PC Pin | Epoxy Sealed Terminals | Non-Illuminated | 25,000 Cycles | -30°C ~ 85°C | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
M2015SA2G40 MINIATURE TOGGLE/MULTI-FUNCTION SWITCH TOGGLE SPDT 0.4VA 28V SPDTONNONE(ON),.413InBat,.280InSmoothwithKeyway,GoldRated0.4VAmax. NKK Switches | 10 | 1: $36.244 | - | 1 | SPDT | 28V | On-Mom | 0.4VA (AC/DC) | Bulk | Standard Round | Through Hole, Right Angle, Vertical | Unthreaded | 12.27mm | Brass, Chrome Plated | PC Pin | Epoxy Sealed Terminals | Non-Illuminated | 50,000 Cycles | -30°C ~ 85°C | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
M2015SA2G13 NKK SWITCHES | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
