cigen-GPB553A2
GPB553A2 switche Series
cw-industriesThe GPB553A2 switch from CW Industries, Inc., is a simple yet reliable push button switch designed for basic electrical circuits. It's commonly used in applications requiring a straightforward on-off control mechanism. If you're working on projects that need a manual input interface, this switch can be a solid choice. One thing worth noting is its durability; engineers tend to reach for this switch when they need something that can handle frequent cycling without failing. Its compact size also makes it easy to integrate into various enclosures and control panels. Another practical use case is in test equipment or small machinery where a simple switch is needed to control power or activate functions. The GPB553A2's simplicity and reliability make it a go-to component for many basic circuit designs
The GPB553A2 switch from CW Industries, Inc., is a simple yet reliable push button switch designed for basic electrical circuits. It's commonly used in applications requiring a straightforward on-off control mechanism. If you're working on projects that need a manual input interface, this switch can be a solid choice. One thing worth noting is its durability; engineers tend to reach for this switch when they need something that can handle frequent cycling without failing. Its compact size also makes it easy to integrate into various enclosures and control panels. Another practical use case is in test equipment or small machinery where a simple switch is needed to control power or activate functions. The GPB553A2's simplicity and reliability make it a go-to component for many basic circuit designs
Series Images (11)
Documents & Media
Frequently Asked Questions
GPB553A2 switche - Part List
11 parts in total| Mfr Part # | Quantity Available | Price | Category | Other Names | Standard Package | Circuit | Voltage Rating | Switch Function | Current Rating (Max) | Packaging | Actuator Type | Mounting Type | Termination Style | Color - Actuator/Cap | Panel Cutout Dimensions | Type | Ingress Protection | Operating Temperature | Electrical Life | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

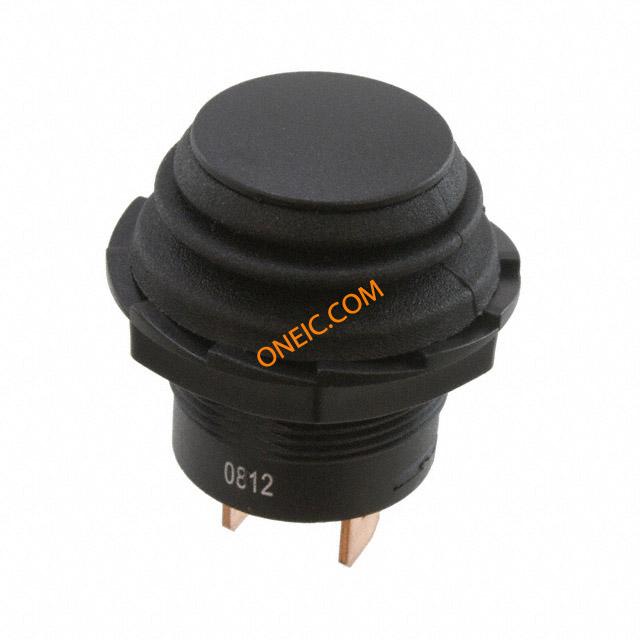

 GPB553A201BB CW Industries | 1040 | 1: $67.728 | - | CWI260 | 500 | SPST-NO | 14V | Off-Mom | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Black | Circular - 22.00mm Dia | Standard | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | 20,000 Cycles | - | - |

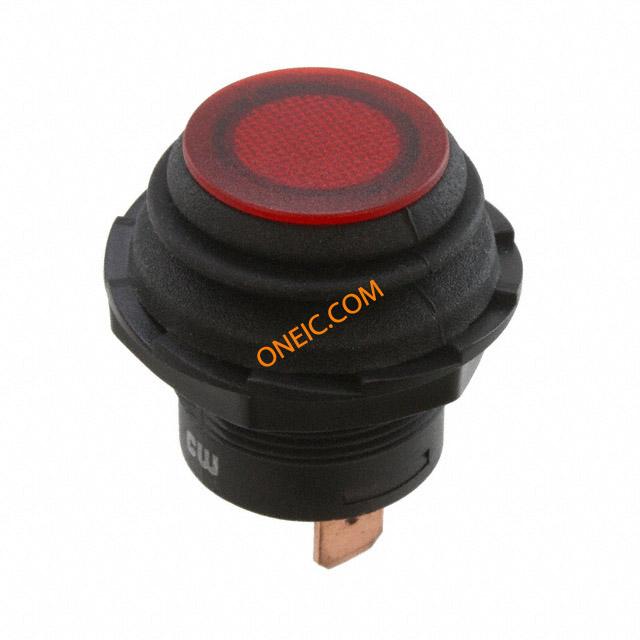

 GPB553A201BR CW Industries | 566 | 1: $31.144 | - | CWI262 | 500 | SPST-NO | 14V | Off-Mom | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Red | Circular - 22.00mm Dia | Standard | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | 20,000 Cycles | - | - |
 GPB553A201BG CW Industries | 452 | 1: $30.192 | - | CWI261 | 500 | SPST-NO | 14V | Off-Mom | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Green | Circular - 22.00mm Dia | Standard | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | 20,000 Cycles | - | - |
 GPB553A201BA CW Industries | 489 | 1: $30.192 | - | CWI259 | 500 | SPST-NO | 14V | Off-Mom | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Amber | Circular - 22.00mm Dia | Standard | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | 20,000 Cycles | - | - |
 GPB553A201BW CW Industries | 481 | 1: $30.192 | - | CWI264 | 500 | SPST-NO | 14V | Off-Mom | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | White | Circular - 22.00mm Dia | Standard | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | 20,000 Cycles | - | - |

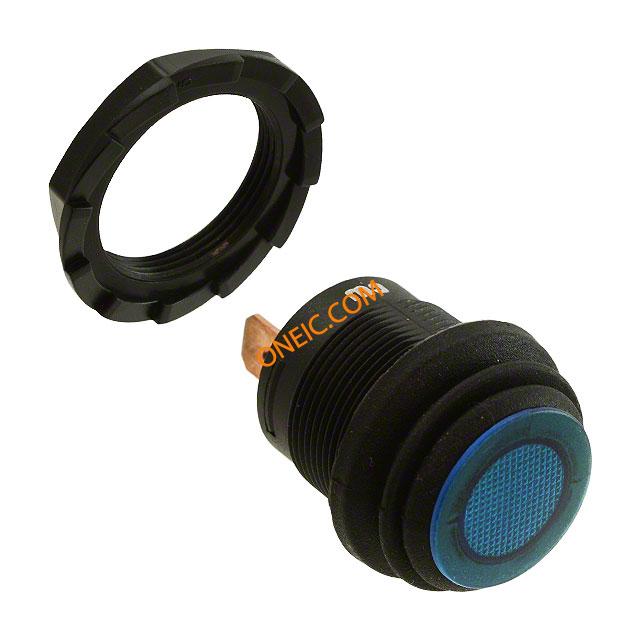

 GPB553A201BU CW Industries | 479 | 1: $30.192 | - | CWI263 | 500 | SPST-NO | 14V | Off-Mom | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Blue | Circular - 22.00mm Dia | Standard | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | 20,000 Cycles | - | - |

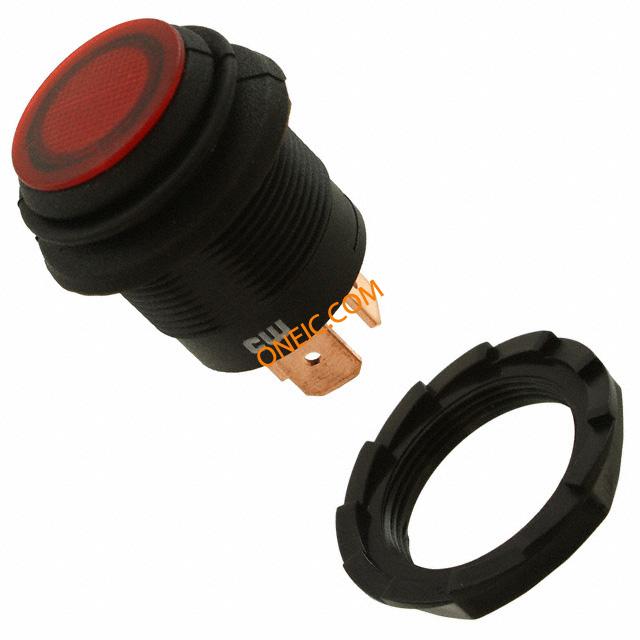

 GPB553A2L01BR CW Industries | 80 | 1: $36.992 | - | CWI267 | 500 | SPST-NO | 14V | Off-Mom | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Red | Circular - 22.00mm Dia | Standard, Illuminated | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | - | 12 VDC | LED, Red |

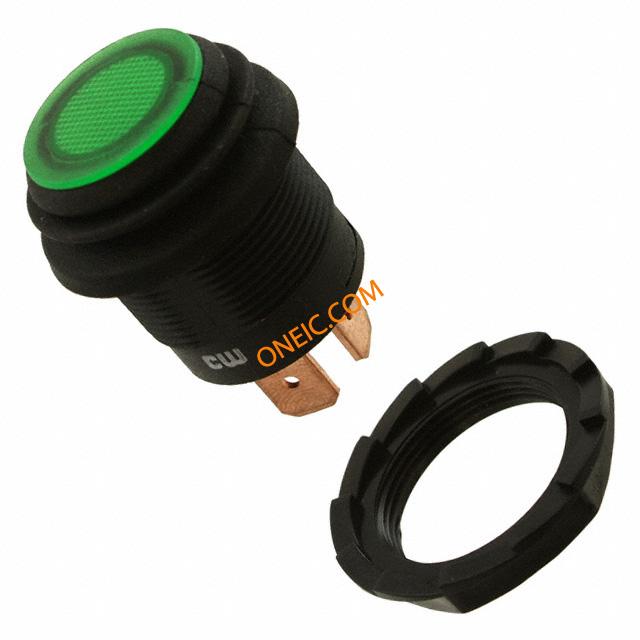

 GPB553A2L01BG CW Industries | 89 | 1: $41.412 | - | CWI266 | 500 | SPST-NO | 14V | Off-Mom | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Green | Circular - 22.00mm Dia | Standard, Illuminated | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | - | 12 VDC | LED, Green |

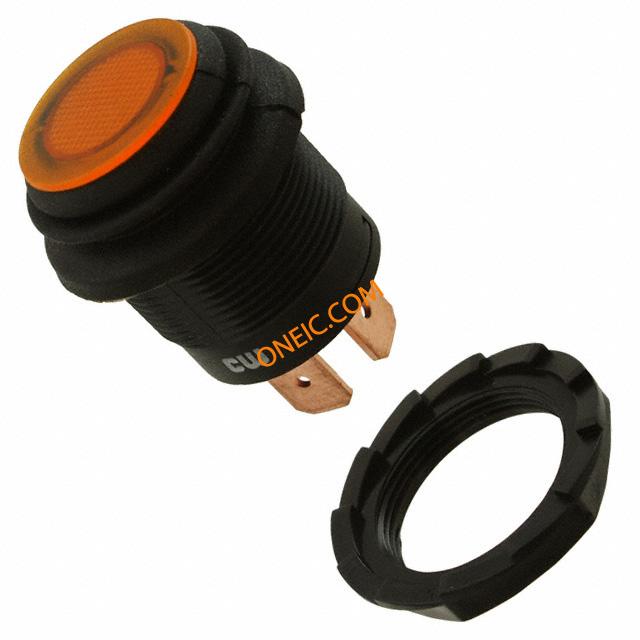

 GPB553A2L01BA CW Industries | 10 | 1: $94.45 | - | CWI265 | 500 | SPST-NO | 14V | Off-Mom | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Amber | Circular - 22.00mm Dia | Standard, Illuminated | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | - | 12 VDC | LED, Amber |

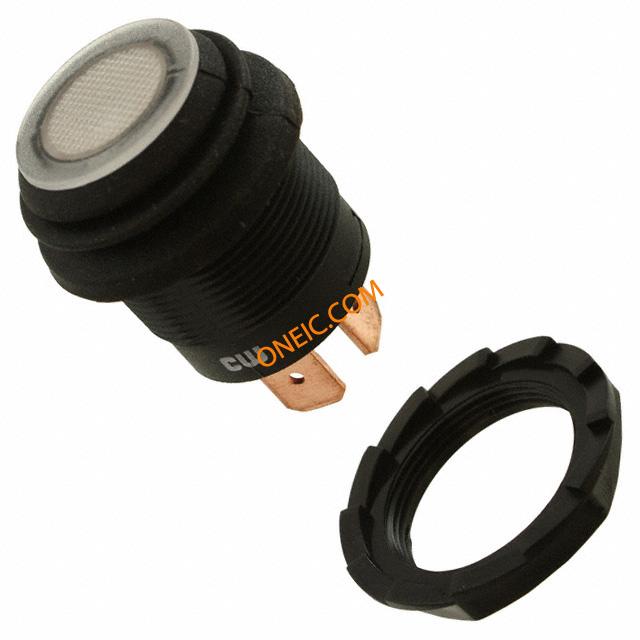

 GPB553A2L01BW CW Industries | 83 | 1: $41.412 | - | CWI269 | 500 | SPST-NO | 14V | Off-Mom | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | White | Circular - 22.00mm Dia | Standard, Illuminated | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | - | 12 VDC | LED, White |
 GPB553A2L01BU CW Industries | 2923 | 1: $86.292 | - | CWI268 | 500 | SPST-NO | 14V | Off-Mom | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Blue | Circular - 22.00mm Dia | Standard, Illuminated | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | - | 12 VDC | LED, Blue |
