cigen-AA3528AP
AA3528AP optoelectronic Series
kingbrightThe AA3528AP series from Kingbright is a versatile collection of surface-mount LEDs and phototransistors available in a range of colors. These components are commonly used in consumer electronics, automotive lighting, and industrial control systems. If you're working on any project that requires precise light emission or detection, these SMD components are a go-to choice. One thing worth noting is their compact size, which makes them ideal for space-constrained applications. Engineers tend to reach for these when they need reliable, high-brightness LEDs for indication purposes or sensitive phototransistors for detecting light levels. Their performance in terms of luminous intensity and sensitivity is quite robust, making them suitable for both indoor and outdoor applications. Additionally, the availability in multiple colors ensures you can match them to your specific design requirements
The AA3528AP series from Kingbright is a versatile collection of surface-mount LEDs and phototransistors available in a range of colors. These components are commonly used in consumer electronics, automotive lighting, and industrial control systems. If you're working on any project that requires precise light emission or detection, these SMD components are a go-to choice. One thing worth noting is their compact size, which makes them ideal for space-constrained applications. Engineers tend to reach for these when they need reliable, high-brightness LEDs for indication purposes or sensitive phototransistors for detecting light levels. Their performance in terms of luminous intensity and sensitivity is quite robust, making them suitable for both indoor and outdoor applications. Additionally, the availability in multiple colors ensures you can match them to your specific design requirements
Series Images (9)
Documents & Media
Frequently Asked Questions
AA3528AP optoelectronic - Part List
4 parts in total| Mfr Part # | Quantity Available | Price | Category | Other Names | Product Category | Standard Package | Factory Pack Quantity | RoHS | Voltage - Supply | Packaging | Mounting Type | Package / Case | Mechanical Life | Optic Size | Viewing Angle | Current - Output | LED Forward Current | Millicandela Rating | Color | Height | Lens Style/Size | Size / Dimension | Lens Type | Operating Temperature | LED Forward Voltage | Illumination Color | Luminous Flux @ Current/Temperature | Wavelength - Peak | Wavelength - Dominant | Product | Lead Time | Subcategory | Fall Time | Wavelength | Power - Max | Rise Time (Typ) | Current - Dark (Max) | Vce Saturation (Max) | Power Dissipation (Max) | Current - Dark (Id) (Max) | Current - Collector (Ic) (Max) | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

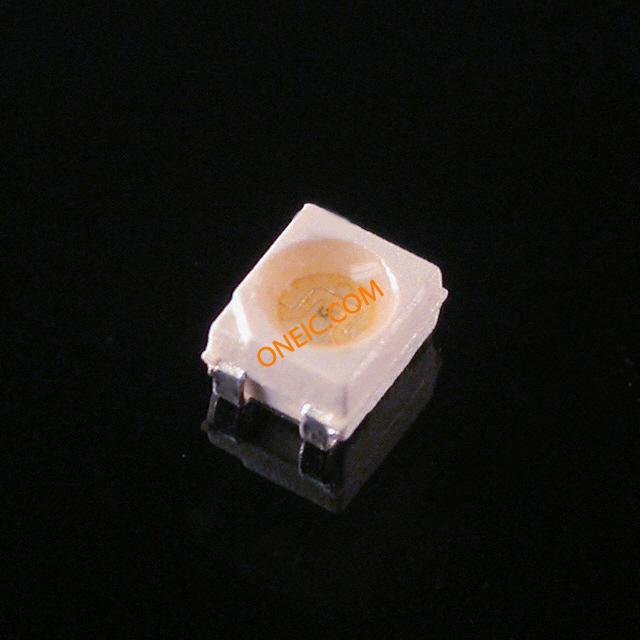

 AA3528APR2C/A Kingbright | 10 | 1500: $2.72 | - | 754-1312-6 | Standard LEDs - SMD | 1,500 | 1500 | RoHS Compliant | 3.2V | Reel | Surface Mount | 3.5 mm x 2.8 mm x 1.9 mm | Obsolete | 3.5 mm x 2.8 mm x 1.9 mm | 120 deg | 20mA | 20 mA | 290mcd | Pink | 1.90mm | Round with Flat Top, 2.4mm | 3.20mm L x 2.80mm W | Clear | + 85 C | 3.2 V | Pink | 290 mcd | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

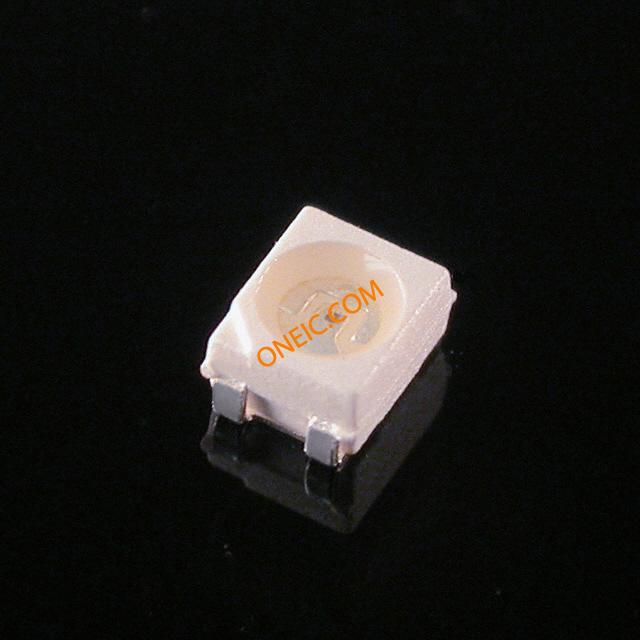

 AA3528APR7C/A Kingbright | 0 | - | 754-1313-2 | Standard LEDs - SMD | 1,500 | 1500 | RoHS Compliant | 3.2V | Reel | Surface Mount | 3.5 mm x 2.8 mm x 1.9 mm | Obsolete | 3.5 mm x 2.8 mm x 1.9 mm | 120 deg | 20mA | 20 mA | 100mcd | Purple | 1.90mm | Round with Flat Top, 2.4mm | 3.20mm L x 2.80mm W | Clear | + 85 C | 3.2 V | Violet | 100 mcd | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 AA3528APBC/A Kingbright | 10 | 1: $9.3786 | - | 754-1011-2 | Standard LEDs - SMD | 1,500 | 1500 | RoHS Compliant | 3.2V | Reel | Surface Mount | 3.5 mm x 2.8 mm x 1.9 mm | Obsolete | 3.5 mm x 2.8 mm x 1.9 mm | 120° | 20mA | 20 mA | 60mcd | Blue | 1.90mm | Round with Flat Top, 2.4mm | 3.20mm L x 2.80mm W | Clear | - | - | - | - | 468nm | 470nm | - | - | - | - | - | - | - | - | - | - | - | - | - |

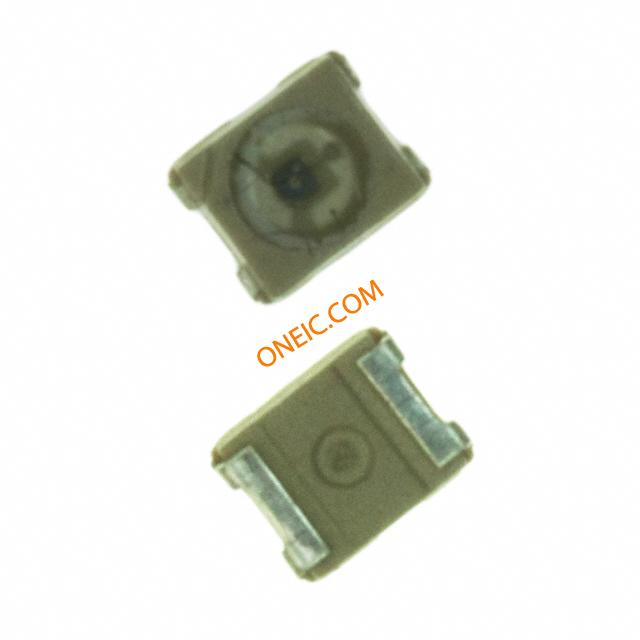

 AA3528AP3C Kingbright | 628 | 1: $3.944 | - | 754-1396-2 | Phototransistors | 1,500 | 1500 | RoHS Compliant | 30 V | Reel | Surface Mount | 3.5 mm x 2.8 mm x 1.9 mm | Obsolete | - | - | - | - | - | - | - | - | - | - | + 85 C | - | - | - | - | - | Phototransistors | 56 Days | Phototransistor | 15 us | 940 nm | 100mW | 15 us | 100 nA | 0.8 V | 100 mW | 100nA | 200µA | Top View |
