AA2214 standard leds - smd Series - Part List, Specs & Data…

The AA2214 series from Kingbright is a versatile lineup of Surface Mount Device (SMD) standard LEDs. These components come in a range of colors and specifications, making them suitable for a variety of projects and systems. If you're working on lighting solutions, indicators, or any application requiring small, bright, and reliable light sources, these LEDs are a solid choice. One thing worth noting is their compact size, which allows for easy integration into PCB designs without taking up much space. Engineers tend to reach for this when they need a dependable LED that can fit into tight spaces while still delivering adequate brightness. Additionally, the variety of colors available ensures that you can match the LED to the specific needs of your project, whether it’s for status indication, backlighting, or general illumination. Another practical observation is their robustness and reliability. They’re designed to withstand typical industrial conditions, making them a good pick for environments with varying temperatures or humidity. This makes them ideal for outdoor applications or devices that will be exposed to the elements. Overall, the AA2214 series from Kingbright offers a ba

Mfr Part #	Quantity Available	Price	Category	Product Category	Standard Package	RoHS	Optic Size	Viewing Angle	Current - Output	Voltage - Supply	Wavelength - Peak	LED Forward Current	Millicandela Rating	Wavelength - Dominant	Color	Height	Packaging	Mounting Type	Package / Case	Lens Style/Size	Size / Dimension	Series	Lens Type	Other Names	Factory Pack Quantity	LED Forward Voltage	Illumination Color	Operating Temperature	Luminous Flux @ Current/Temperature	Lens Color
2 AA2214SYSK Kingbright	2486	1: $4.08	-	Standard LEDs - SMD	2,000	RoHS Compliant	2.2 mm x 1.4 mm x 1.3 mm	120 deg	20mA	2V	590nm	20 mA	250mcd	590 nm	Yellow	1.30mm	Reel	Surface Mount	2.2 mm x 1.4 mm x 1.3 mm	Oval with Flat Top, 1.65mm x 1.15mm	2.20mm L x 1.40mm W	AA2214	Clear	754-1569-2	2000	2.5 V	Yellow	+ 85 C	250 mcd	Water Clear

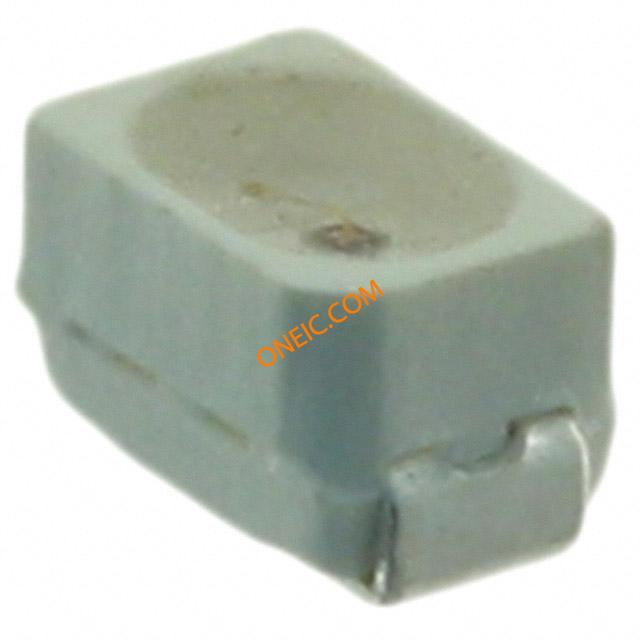

2 AA2214SURSK Kingbright	898	1: $2.992	-	Standard LEDs - SMD	2,000	RoHS Compliant	2.2 mm x 1.4 mm x 1.3 mm	120 deg	20mA	1.95V	650nm	20 mA	350mcd	630 nm	Red	1.30mm	Reel	Surface Mount	2.2 mm x 1.4 mm x 1.3 mm	Oval with Flat Top, 1.65mm x 1.15mm	2.20mm L x 1.40mm W	AA2214	Clear	754-1566-2	2000	2.5 V	Red	+ 85 C	400 mcd	Water Clear
2 AA2214SESK Kingbright	1920	1: $2.992	-	Standard LEDs - SMD	2,000	RoHS Compliant	2.2 mm x 1.4 mm x 1.3 mm	120 deg	20mA	2.1V	610nm	20 mA	400mcd	601 nm	Orange	1.30mm	Reel	Surface Mount	2.2 mm x 1.4 mm x 1.3 mm	Oval with Flat Top, 1.65mm x 1.15mm	2.20mm L x 1.40mm W	AA2214	Clear	754-1627-1	2000	2.5 V	Orange	+ 85 C	450 mcd	Water Clear
AA2214QBS/D Kingbright	504	1: $3.128	-	Standard LEDs - SMD	2,000	RoHS Compliant	2.2 mm x 1.4 mm x 1.3 mm	120 deg	20mA	3.3V	468nm	20 mA	150mcd	470 nm	Blue	1.30mm	Reel	Surface Mount	2.2 mm x 1.4 mm x 1.3 mm	Oval with Flat Top, 1.65mm x 1.15mm	2.20mm L x 1.40mm W	AA2214	Clear	-	2000	4 V	Blue	+ 85 C	150 mcd	Water Clear

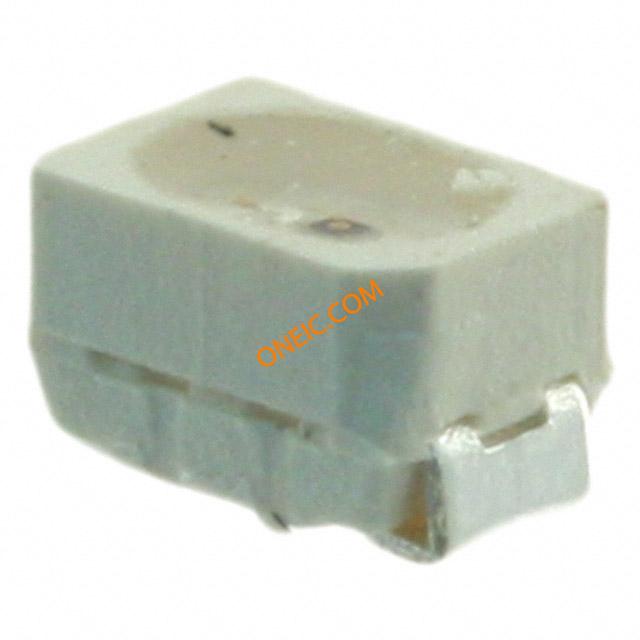

2 AA2214CGSK Kingbright	1351	1: $2.992	-	Standard LEDs - SMD	2,000	RoHS Compliant	2.2 mm x 1.4 mm x 1.3 mm	120 deg	20mA	2.1V	574nm	20 mA	80mcd	570 nm	Green	1.30mm	Reel	Surface Mount	2.2 mm x 1.4 mm x 1.3 mm	Oval with Flat Top, 1.65mm x 1.15mm	2.20mm L x 1.40mm W	AA2214	Clear	754-1568-2	2000	2.5 V	Green	+ 85 C	100 mcd	Water Clear
AA2214ZGS Kingbright	15707	1: $4.284	-	Standard LEDs - SMD	2,000	RoHS Compliant	2.2 mm x 1.4 mm x 1.3 mm	120 deg	20mA	3.3V	515nm	20 mA	600mcd	525nm	Green	1.30mm	Reel	Surface Mount	2.2 mm x 1.4 mm x 1.3 mm	Oval with Flat Top, 1.65mm x 1.15mm	2.20mm L x 1.40mm W	AA2214	Clear	754-1626-1	2000	-	-	-	-	-

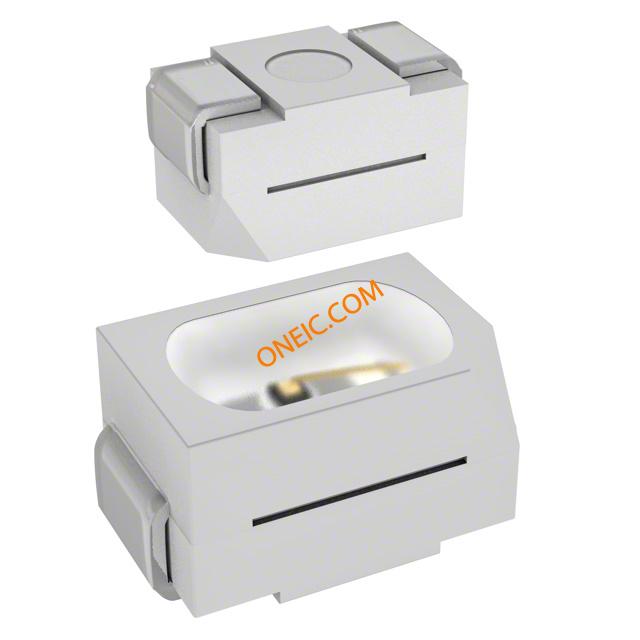

AA2214SES/J4 Kingbright	367	1: $5.644	-	Standard LEDs - SMD	2,000	Lead free / RoHS Compliant	2.2 mm x 1.4 mm x 1.3 mm	120°	20mA	2.2V	611nm	20 mA	2700mcd	605nm	Orange	1.30mm	Tape & Reel (TR)	Surface Mount	2-SMD, J-Lead	Oval with Flat Top, 1.65mm x 1.15mm	2.20mm L x 1.40mm W	AA2214	Clear	754-1567-2	-	2.2 V	Orange	- 40 C	2700 mcd	-
AA2214ZGSK KINGBRIGHT	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
