Mill-Max Mfg. Corp.- Miniature Circular Connectors

Mill-Max Mfg. Corp. is an American privately held company founded in 1971, headquartered in Oyster Bay, New York. It is a vertically integrated engineering and manufacturing company specializing in precision-machined interconnect components for the electronics industry. The company produces over 100 million components weekly, making it the largest manufacturer of such precision machined interconnect components in North America. Mill-Max’s extensive product line includes solder terminals, PCB pins, wire termination sockets, spring-loaded connectors (pogo pins), press-fit terminals, and discrete socket carriers. Their Spring-Loaded Contacts and Target Connectors are widely used in applications requiring high reliability and durability, such as medical devices, military equipment, and test & measurement instruments. The company also offers custom interconnect solutions tailored to specific customer requirements. With in-house tooling, machining, plating, and assembly capabilities, Mill-Max ensures strict quality control and rapid prototyping. Its products are known for high precision and long life cycles. They serve a broad customer base across aerospace, defense, industrial, automotive, and consumer electronics sectors globally.

Miniature Circular Connectors - 型号列表

88 parts in total

Mfr Part #	Quantity Available	Price	Standard Package	Packaging	Insulation	Termination	Mounting Type	Terminal Type	Contact Finish	Contact Material	Length - Overall	Pin Size - Below Flange	Contact Finish Thickness	Length - Tail	Flange Diameter	Mounting Hole Diameter	Other Names	RoHS	Pin Size - Above Flange
2 9083-0-00-15-00-00-38-0 CONN PIN NAIL-HEAD L =.153" GOLD CONN PC PIN CIRC .012DIA GOLD Mill-Max Manufacturing Corp.	20898	1: $0.8568	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.153" (3.89mm)	0.012" (0.30mm) Dia	10µin (0.25µm)	0.145" (3.68mm)	0.040" (1.02mm)	0.016" (0.41mm)	-	-	-
2 6477-0-00-15-00-00-38-0 CONN PIN NAIL HEAD L =.165" GOLD CONN PC PIN CIRC .030DIA GOLD Mill-Max Manufacturing Corp.	103809	1: $0.6759	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.165" (4.19mm)	0.030" (0.76mm) Dia	10µin (0.25µm)	0.150" (3.81mm)	0.055" (1.40mm)	0.034" (0.86mm)	-	-	-
2 4689-0-00-15-00-00-33-0 CONN PIN NAIL-HEAD L =.125" GOLD CONN PC PIN CIRC .015DIA GOLD Mill-Max Manufacturing Corp.	13669	1: $0.5331	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.125" (3.18mm)	0.015" (0.38mm) Dia	10µin (0.25µm)	0.105" (2.67mm)	0.035" (0.89mm)	0.019" (0.48mm)	-	-	-
2 5240-0-00-15-00-00-33-0 CONN PIN NAIL-HEAD L =.240" GOLD CONN PC PIN CIRC .025DIA GOLD Mill-Max Manufacturing Corp.	6314	1: $0.5617	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.240" (6.10mm)	0.025" (0.64mm) Dia	10µin (0.25µm)	0.232" (5.89mm)	0.062" (1.57mm)	0.029" (0.74mm)	-	-	-
2 2381-0-00-15-00-00-33-0 CONN PIN NAIL-HEAD L =.155" GOLD CONN PC PIN CIRC .050DIA GOLD Mill-Max Manufacturing Corp.	12113	1: $0.9044	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.155" (3.94mm)	0.050" (1.27mm) Dia	10µin (0.25µm)	0.145" (3.68mm)	0.080" (2.03mm)	0.054" (1.37mm)	-	-	-
2 9113-0-00-15-00-00-38-0 CONN PIN NAIL-HEAD L =.166" GOLD CONN PC PIN CIRC .018DIA GOLD Mill-Max Manufacturing Corp.	10	1: $0.0413	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.166" (4.22mm)	0.018" (0.46mm) Dia	10µin (0.25µm)	0.160" (4.06mm)	0.050" (1.27mm)	0.022" (0.56mm)	-	-	-
2 1179-0-00-15-00-00-33-0 CONN PIN NAIL-HEAD L =.664" GOLD CONN PC PIN CIRC .040DIA GOLD Mill-Max Manufacturing Corp.	11694	1: $0.7045	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.664" (16.87mm)	0.040" (1.02mm) Dia	10µin (0.25µm)	0.644" (16.36mm)	0.060" (1.52mm)	0.044" (1.12mm)	-	-	-
2 4184-0-00-15-00-00-33-0 CONN PIN NAIL-HEAD L =.080" GOLD CONN PC PIN CIRC .010DIA GOLD Mill-Max Manufacturing Corp.	858	1: $0.6188	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.080" (2.03mm)	0.010" (0.25mm) Dia	10µin (0.25µm)	0.070" (1.78mm)	0.030" (0.76mm)	0.014" (0.36mm)	-	-	-
2 9265-0-00-15-00-00-38-0 CONN PIN NAIL-HEAD L =.265" GOLD CONN PC PIN CIRC .059DIA GOLD Mill-Max Manufacturing Corp.	30446	1: $1.0853	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.265" (6.73mm)	0.059" (1.50mm) Dia	10µin (0.25µm)	0.240" (6.10mm)	0.072" (1.83mm)	0.063" (1.60mm)	-	-	-
2 4353-0-00-15-00-00-33-0 CONN PIN NAIL-HEAD L =.084" GOLD CONN PC PIN CIRC .012DIA GOLD Mill-Max Manufacturing Corp.	3064	1: $0.8473	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.084" (2.13mm)	0.012" (0.30mm) Dia	10µin (0.25µm)	0.074" (1.88mm)	0.030" (0.76mm)	0.016" (0.41mm)	-	-	-
4477-0-00-15-00-00-33-0 CONN NAIL HEAD PIN 5.84MM CONN PC PIN CIRC .030DIA GOLD Mill-Max Manufacturing Corp.	14317	1: $0.5141	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.230" (5.84mm)	0.030" (0.76mm) Dia	10µin (0.25µm)	0.215" (5.46mm)	0.055" (1.40mm)	0.034" (0.86mm)	-	-	-
9137-0-00-15-00-00-38-0 CONN NAIL HEAD PIN 4.57MM CONN PC PIN CIRC .018DIA GOLD Mill-Max Manufacturing Corp.	10	4: $4.641	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.180" (4.57mm)	0.018" (0.46mm) Dia	10µin (0.25µm)	0.160" (4.06mm)	0.050" (1.27mm)	0.022" (0.56mm)	-	-	-
5035-0-00-15-00-00-33-0 CONN NAIL HEAD PIN 4.06MM CONN PC PIN CIRC .025DIA GOLD Mill-Max Manufacturing Corp.	3964	1: $0.6664	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.160" (4.06mm)	0.025" (0.64mm) Dia	10µin (0.25µm)	0.150" (3.81mm)	0.050" (1.27mm)	0.029" (0.74mm)	-	-	-

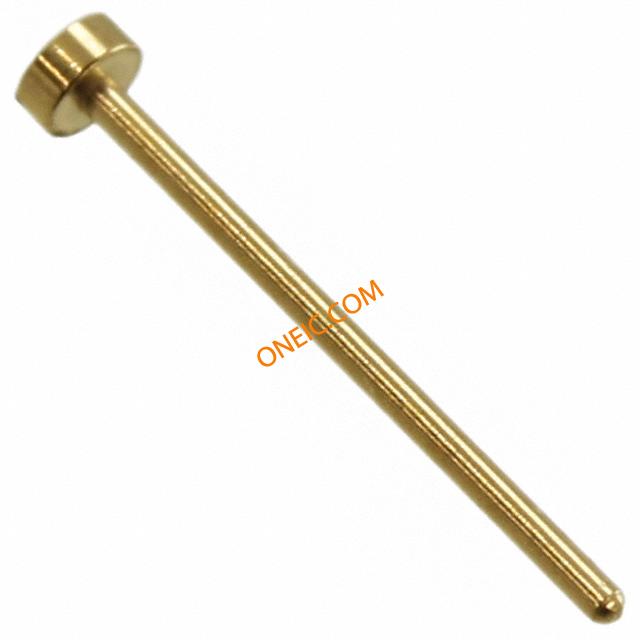

5137-0-00-15-00-00-38-0 CONN NAIL HEAD PIN 8.13MM CONN PC PIN CIRC .018DIA GOLD Mill-Max Manufacturing Corp.	27179	1: $0.7711	500	Bulk	Non-Insulated	Solder	Through Hole	Single End, Nail Head	Gold	Brass Alloy	0.320" (8.13mm)	0.018" (0.46mm) Dia	10µin (0.25µm)	0.300" (7.62mm)	0.050" (1.27mm)	0.022" (0.56mm)	-	-	-

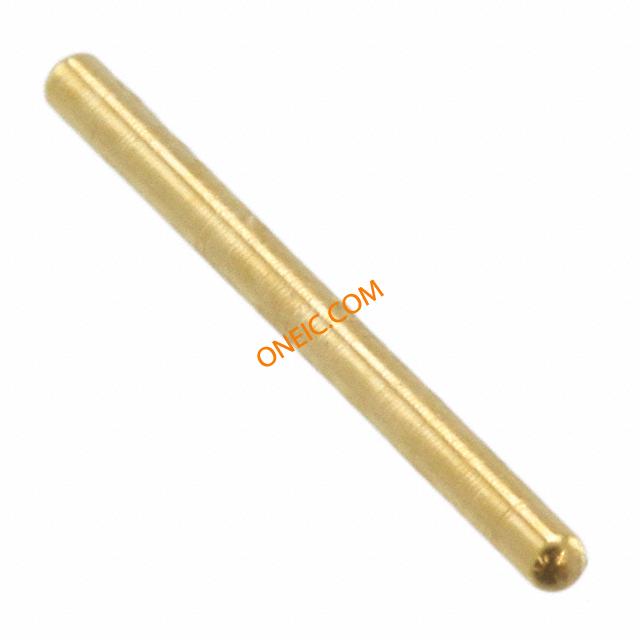

3320-0-00-15-00-00-03-0 CONN PC PIN CIRC .020DIA GOLD Mill-Max Manufacturing Corp.	25	25: $0.2954	500	Bulk	Non-Insulated	Solder	Through Hole	Smooth	Gold	Brass Alloy	0.250" (6.35mm)	0.020" (0.51mm) Dia	10µin (0.25µm)	-	-	-	ED1134	Lead free / RoHS Compliant	0.020" (0.51mm) Dia

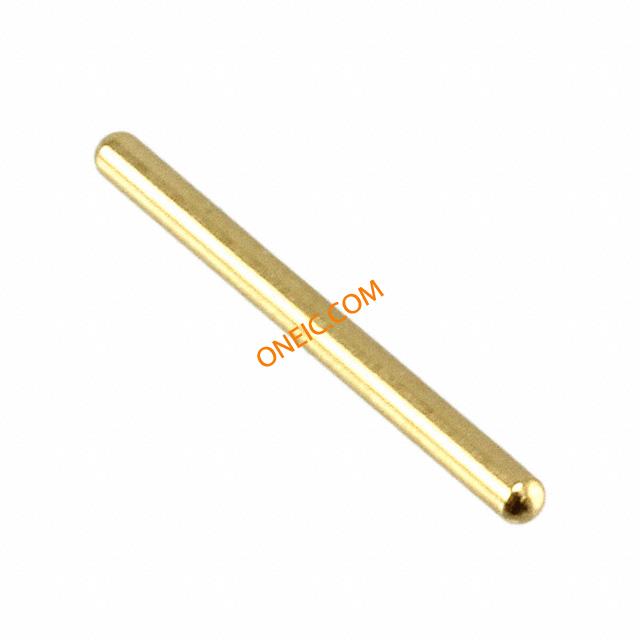

3340-1-00-15-00-00-03-0 CONN PC PIN CIRC .040DIA GOLD Mill-Max Manufacturing Corp.	10	1: $0.3703	500	Bulk	Non-Insulated	Solder	Through Hole	Smooth	Gold	Brass Alloy	0.500" (12.70mm)	0.040" (1.02mm) Dia	10µin (0.25µm)	-	-	-	ED1143	Lead free / RoHS Compliant	0.040" (1.02mm) Dia

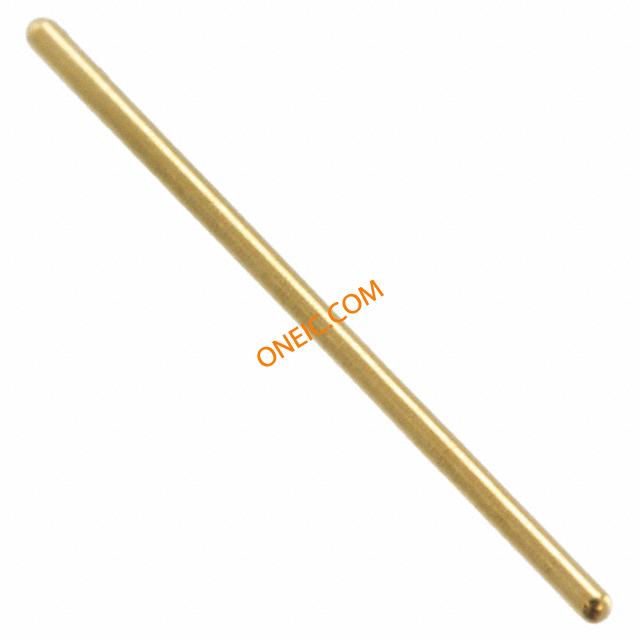

3320-1-00-15-00-00-03-0 CONN PC PIN CIRC .020DIA GOLD Mill-Max Manufacturing Corp.	4250	1: $0.457	500	Bulk	Non-Insulated	Solder	Through Hole	Smooth	Gold	Brass Alloy	0.500" (12.70mm)	0.020" (0.51mm) Dia	10µin (0.25µm)	-	-	-	ED1161	Lead free / RoHS Compliant	0.020" (0.51mm) Dia

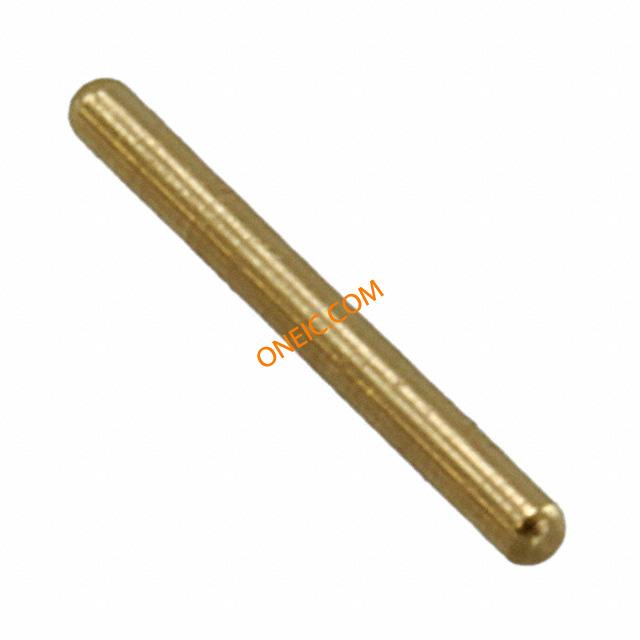

3325-0-00-15-00-00-03-0 CONN PC PIN CIRC .025DIA GOLD Mill-Max Manufacturing Corp.	5397	1: $0.1714	500	Bulk	Non-Insulated	Solder	Through Hole	Smooth	Gold	Brass Alloy	0.250" (6.35mm)	0.025" (0.64mm) Dia	10µin (0.25µm)	-	-	-	ED1136	Lead free / RoHS Compliant	0.025" (0.64mm) Dia

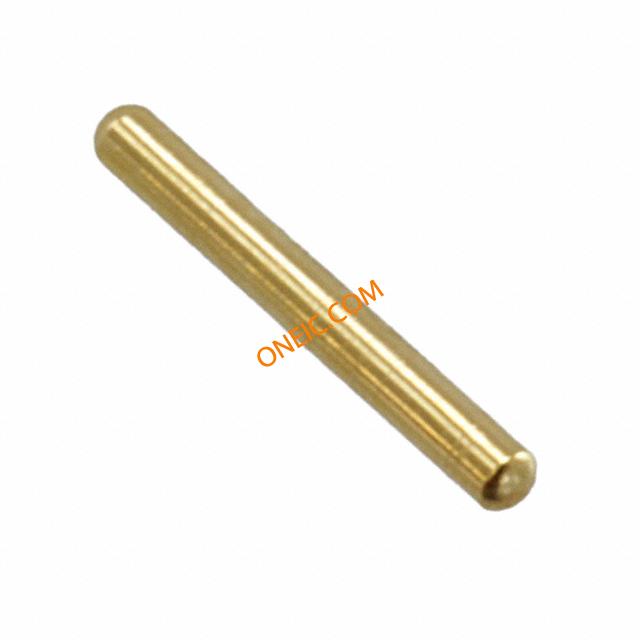

3330-0-00-15-00-00-03-0 CONN PC PIN CIRC .030DIA GOLD Mill-Max Manufacturing Corp.	1130	1: $0.1714	500	Bulk	Non-Insulated	Solder	Through Hole	Smooth	Gold	Brass Alloy	0.250" (6.35mm)	0.030" (0.76mm) Dia	10µin (0.25µm)	-	-	-	ED1139	Lead free / RoHS Compliant	0.030" (0.76mm) Dia

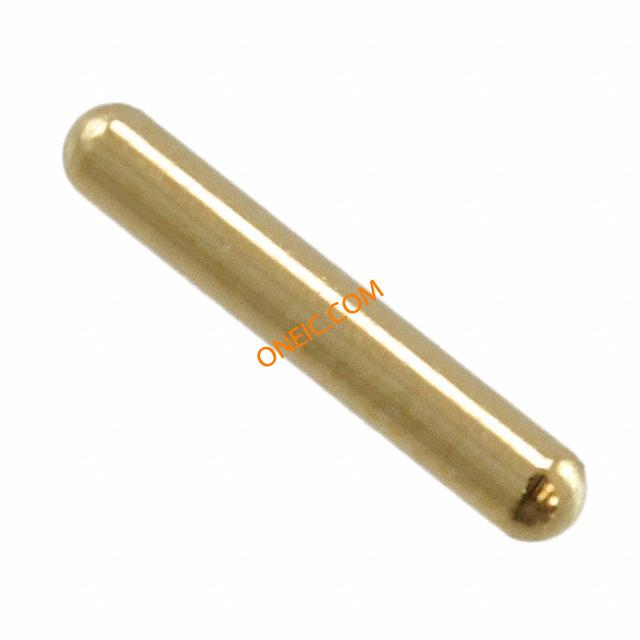

3340-0-00-15-00-00-03-0 CONN PC PIN CIRC .040DIA GOLD Mill-Max Manufacturing Corp.	4831	1: $0.1809	500	Bulk	Non-Insulated	Solder	Through Hole	Smooth	Gold	Brass Alloy	0.250" (6.35mm)	0.040" (1.02mm) Dia	10µin (0.25µm)	-	-	-	ED1142	Lead free / RoHS Compliant	0.040" (1.02mm) Dia
